Opel Insignia: Front Seats

Seat Adjustment

Manual Seats

Warning: You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is moving.

Adjust the driver seat only when the vehicle is not moving.

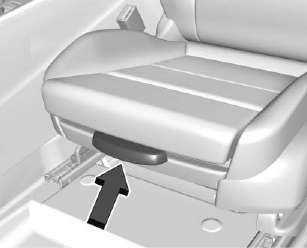

To adjust a manual seat:

To adjust a manual seat:

1. Pull up on the handle at the front of the seat.

2. Slide the seat to the desired position and release the handle.

3. Try to move the seat back and forth to be sure it is locked in place.

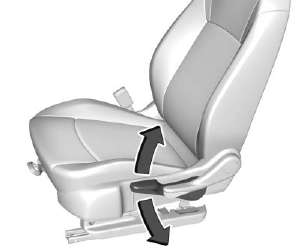

Seat Height Adjuster

If available, move the lever up or

If available, move the lever up or down to manually raise or lower the seat.

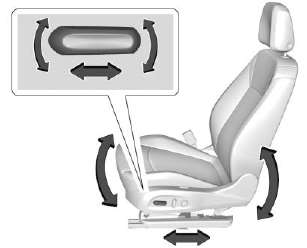

Power Seat Adjustment

To adjust a power seat, if equipped:

To adjust a power seat, if equipped:

  • Move the seat forward or rearward by sliding the control forward or rearward.
  • Raise or lower the front part of the seat cushion by moving the front of the control up or down.
  • Raise or lower the entire seat by moving the rear of the control up or down.

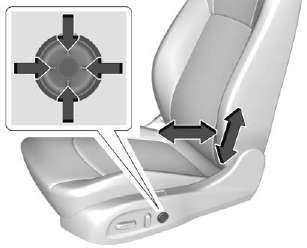

Lumbar Adjustment

Four-Way Shown, Two-Way Four-Way Shown, Two-Way Similar

To adjust the lumbar support, if equipped:

  • Press and hold the front or rear of the control to increase or decrease lumbar support.
  • If equipped, press and hold the top or bottom of the control to raise or lower lumbar support.

Back Bolster Adjustment

To adjust the back bolster support,

To adjust the back bolster support, if equipped:

  • Press and hold the front of the control to decrease back bolster support.
  • Press and hold the rear of the control to increase back bolster support.

Thigh Support Adjustment

If equipped, pull up on the lever.

If equipped, pull up on the lever.

Then pull or push on the support to lengthen or shorten. Release the lever to lock in place.

Reclining Seatbacks

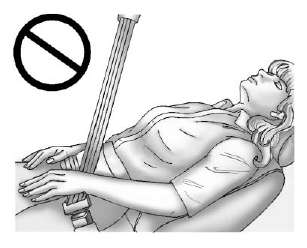

Warning: Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the seat belts cannot do their job.

The shoulder belt will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries.

The lap belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the seat belt properly.

Do not have a seatback reclined if

Do not have a seatback reclined if the vehicle is moving.

Manual Reclining Seatbacks

Warning: If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there.

Always push and pull on the seatbacks to be sure they are locked.

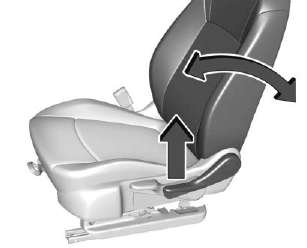

To recline a manual seatback:

To recline a manual seatback:

1. Lift the lever.

2. Move the seatback to the desired position, and then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is locked.

To return the seatback to the upright position:

1. Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position.

2. Push and pull on the seatback to make sure it is locked.

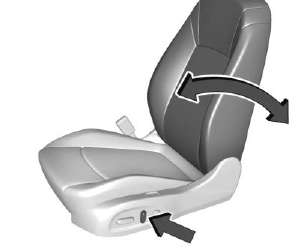

Power Reclining Seatbacks

To adjust a power seatback,

To adjust a power seatback, if available:

  • Tilt the top of the control rearward to recline.
  • Tilt the top of the control forward to raise.

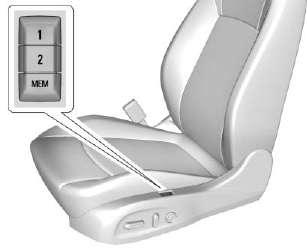

Memory Seats

If equipped, memory seats allow two

If equipped, memory seats allow two drivers to save and recall their unique seat positions for driving the vehicle, and a shared exit position for getting out of the vehicle. Other feature positions may also be saved, such as power mirrors and power steering wheel, if equipped.

Memory positions are linked to RKE transmitter 1 or 2 for automatic memory recalls.

Before saving, adjust all available memory feature positions. Turn the ignition on and then press and release SET; a beep will sound.

Then immediately press and hold 1, 2, or sound. To manually recall these(Exit) until two beeps sound. To manually recall these positions, press and hold 1, 2, or until the saved position is reached. until the saved position is reached.

Follow the instructions under "Saving Memory Positions." The vehicle identifies the current driver's RKE transmitter number (1- 8). Only RKE transmitters 1 and 2 can be used for automatic memory recalls.

A Driver Information Center (DIC) welcome message indicating the transmitter number may display for the first few ignition cycles following a transmitter change. For Auto Memory Recall to work properly, save the positions to the memory button (1 or 2) matching the RKE transmitter number displayed in the DIC welcome message. Carry the linked RKE transmitter when entering the vehicle.

Memory adjustments may not be available upon delivery or after service until steps in "Saving Memory Positions" section are performed.

Vehicle Personalization Settings

  • To have the Auto Memory Recall movement begin when the vehicle is started, select the Settings menu, then Vehicle, then Comfort and Convenience, and then Auto Memory Recall.

    Select On or Off. See "Auto Memory Recall" later in this section.

  • To begin Easy Exit Recall movement when the ignition is turned off and the driver door is opened, or when the ignition is turned off with the driver door already opened, select the Settings menu, then Vehicle, then Comfort and Convenience, and then Easy Exit Options.

    Select On or Off. See "Easy Exit Recall" later in this section.

Identifying Driver Number

To identify the driver number:

1. Start the vehicle with a different key or RKE transmitter. The DIC should display the driver number; 1 or 2. Turn the ignition off and remove the key or RKE transmitter from the vehicle.

2. Start the vehicle with the initial key or RKE transmitter. The DIC should display the other driver number not shown in Step 1.

Saving Memory Positions

Read these instructions completely before saving memory positions.

To save preferred driving positions 1 and 2:

1. Turn the ignition on or to ACC/ ACCESSORY.

A DIC welcome message may indicate driver number 1 or 2.

2. Adjust all available memory features to the desired driving position.

3. Press and release SET; a beep will sound.

4. Immediately press and hold the 1 or 2 memory button matching the above DIC welcome message until two beeps sound.

If too much time passes between releasing SET and pressing 1, the memory position will not be saved and two beeps will not sound.

Repeat Steps 3 and 4.

1 or 2 corresponds to the driver number. See "Identifying Driver Number" previously in this section.

5. Repeat Steps 1-4 for a second driver using 1 or 2.

To save the position for easy exit features, repeat Steps 1-4 and easy exit features, repeat Steps 1-4 using for getting out of the vehicle.. This saves the position for getting out of the vehicle.

Save preferred memory feature positions to both 1 and 2 if you are the only driver.

Manually Recalling Memory Positions

Press and hold 1, 2, or the previously saved memory to recall the previously saved memory positions.

To stop Manual Memory Recall movement, release 1, 2, or press any of the following controls: or press any of the following controls:

  • Power seat
  • Memory SET
  • Power mirror, with the driver or passenger side mirror se

Auto Memory Recall

The vehicle identifies the number of the current driver's RKE transmitter (1-8). If the RKE transmitter is 1 or 2, and Auto Memory Recall is programmed on in vehicle personalization, the positions saved to the same memory button number 1 or 2 are automatically recalled when the ignition is turned on, or turned from off to ACC/ACCESSORY. RKE transmitters 3-8 will not provide automatic memory recalls.

To turn Auto Memory Recall on or off, see "Vehicle Personalization Settings" previously in this section and Vehicle Personalization.

The shift lever must be in P (Park) to start Auto Memory Recall. Auto Memory Recall will complete if the vehicle is shifted out of P (Park) prior to reaching the saved memory position.

To stop Auto Memory Recall movement, turn the ignition off or press any of the following controls:

  • Power seat
  • Memory SET, 1, 2, or Power mirror, with the driver or
  • Power mirror, with the driver or passenger side mirror selected
  • Power steering wheel, if equipped

If the saved memory seat position does not automatically recall or recalls to the wrong positions, the driver's RKE transmitter number (1 or 2) may not match the memory button number that positions were saved to. Try saving the position to the other memory button or try the other RKE transmitter.

Easy Exit Recall

Easy Exit Recall is not linked to an RKE transmitter. The position saved to Easy Exit Recall on or off, see is used for all drivers. To turn Easy Exit Recall on or off, see "Vehicle Personalization Settings" previously in this section and Vehicle Personalization.

If turned on, the position saved to  one of the following occurs: is automatically recalled when one of the following occurs:

  • The vehicle is turned off and the driver door is opened within a short time.
  • The vehicle is turned off with the driver door open.

To stop Easy Exit Recall movement, press any of the following memory controls:

  • Power seat
  • Memory SET, 1, 2, or Power mirror, with the driver or
  • Power mirror, with the driver or passenger side mirror selected
  • Power steering wheel, if equipped

Obstructions

If something has blocked the driver seat and/or power steering wheel while recalling a memory position, the recall may stop. Remove the obstruction and try the recall again.

If the memory position still does not recall, see your dealer for service.

Heated and Ventilated Front Seats

Warning: If temperature change or pain to the skin cannot be felt, the seat heater may cause burns. To reduce the risk of burns, use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against heat, such as a blanket, cushion, cover, or similar item. This may cause the seat heater to overheat. An overheated seat heater may cause a burn or may damage the seat.

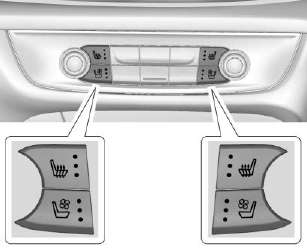

If equipped, the buttons are near the

If equipped, the buttons are near the climate controls on the center stack.

To operate, the ignition must be on.

Press to heat the driver or or passenger seat cushion. to heat the driver or passenger seat cushion.

Press to ventilate the driver or or passenger seat. to ventilate the driver or passenger seat.

Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The indicator lights next to the buttons indicate three for the highest setting and one for the lowest. If the heated seats are on high, the level may automatically be lowered after approximately 30 minutes.

When this feature is off, the heated and ventilated seat symbols on the buttons are white. A ventilated seat has a fan that pulls or pushes air through the seat. The air is not cooled. When a heated seat is turned on, the symbol turns red.

When a ventilated seat is turned on, the symbol turns blue.

The passenger seat may take longer to heat up.

Auto Heated and Ventilated Seats

If the vehicle is equipped with auto heated or ventilated seats, and the ignition is on, this feature will automatically activate the heated or ventilated seats at the level required by the vehicle's interior temperature.

The active high, medium, low, or off heated or ventilated seat level will be indicated by the manual heated and ventilated seat buttons on the center stack. Use the manual heated and ventilated seat buttons on the center stack to turn auto heated or ventilated seats off. If the passenger seat is unoccupied, the auto heated or ventilated seats feature will not activate that seat.

The auto heated and ventilated seats feature can be programmed to always be enabled when the vehicle is on.

Remote Start Heated and Ventilated Seats

If equipped, the heated seats will turn on automatically during a remote start if it is cold outside and the ventilated seats will turn on automatically if it is hot outside. The heated and ventilated seat indicators may not come on during this operation.

The heated and ventilated seats may cancel when the vehicle is started. These features can be manually selected after the ignition is turned on.

The temperature performance of an unoccupied seat may be reduced.

This is normal.

The heated or ventilated seats will not turn on during a remote start unless they are enabled in the vehicle personalization menu.

Massage

If equipped, the ignition must be on to use the massage feature.

If equipped, press the massage

If equipped, press the massage button to use the massage feature.

To stop massage, press this button again.

The massage feature will turn off after approximately 10 minutes.

Press the massage button to restart the massage feature.
