Opel Insignia: Technical Data

Vehicle Identification

Vehicle Identification Number (VIN)

This legal identifier is in the front

This legal identifier is in the front corner of the instrument panel, on the driver side of the vehicle. It can be seen through the windshield from outside. The Vehicle Identification Number (VIN) also appears on the Vehicle Certification and Service Parts labels and certificates of title and registration.

Engine Identification

The eighth character in the VIN is the engine code. This code identifies the vehicle's engine, specifications, and replacement parts.

Service Parts Identification Label

There may be a label on the inside of the glove box or rear cargo area that contains the following information:

  • Vehicle Identification Number (VIN)
  • Model designation
  • Paint information
  • Production options and special equipment

If there is no label, there is a barcode on the certification label on the center (B) pillar to scan for this same information.

Vehicle Data

Capacities and Specifications

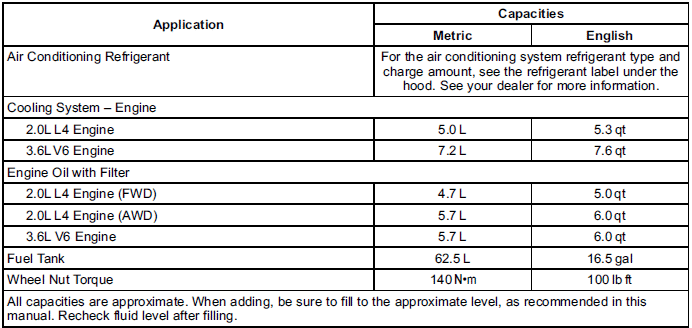

The following approximate capacities are given in metric and English conversions.

Engine Specifications

Engine Specifications

Engine Drive Belt Routing

Engine Drive Belt Routing

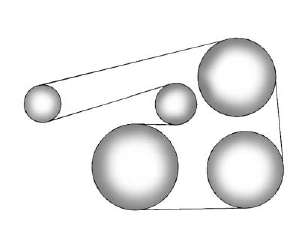

2.0L L4 Engine 2.0L L4 Engine

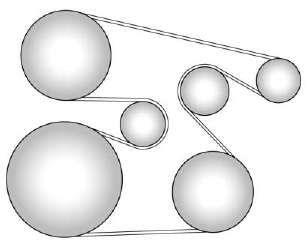

3.6L V6 Engine 3.6L V6 Engine
