Opel Insignia: Additional Storage Features

Opel Insignia B 2018-2024 Owners Manual / Storage / Additional Storage Features

Cargo Cover

Warning: An unsecured cargo cover could strike people in a sudden stop or turn, or in a crash. Store the cargo cover securely or remove it from the vehicle.

Warning: Do not place objects on the cargo cover. Sudden stops or turns can cause objects to be thrown in the vehicle. You or others could be injured.

If equipped with a cargo cover, use it to cover items in the rear of the vehicle.

Hatchback

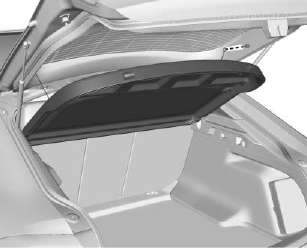

To remove the cargo cover:

To remove the cargo cover:

1. Remove both cords from the hooks on the liftgate.

2. Push up on the front sides of the cargo cover.

3. Remove it from the vehicle.

To install the cargo cover:

1. Align the clips on the underside of the cargo cover over the pins on both sides and push down.

2. Reconnect both of the cords to the hooks at the top of the liftgate.

Wagon

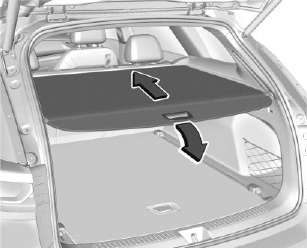

Pull the handle toward the rear and up until it engages in the side retainers.

Pull the handle to the rear and

Pull the handle to the rear and down. It rolls up automatically.

Removing the Cargo Cover

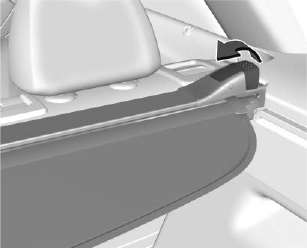

Pull the release lever on the right

Pull the release lever on the right side up and hold it. Lift the right side and remove from retainers.

Installing the Cargo Cover

Insert the left side of the cargo cover in recess, then pull release lever up.

Hold and insert the right side of the cargo cover in recess and engage.

Cargo Tie-Downs (Wagon)

There is a movable system to secure items on the load compartment floor.

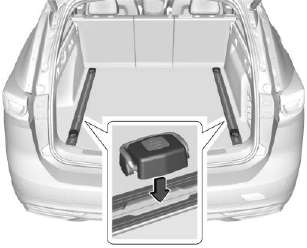

Insert the tie-downs into the rails

Insert the tie-downs into the rails and press the button while inserting it.

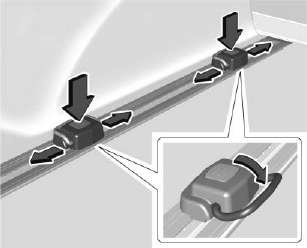

Press the button on a tie-down and

Press the button on a tie-down and slide it to the required position. Fold up the tie-downs to use them.

To remove the cargo tie-downs, fold them down, press the button and remove.

Convenience Net

If equipped, the convenience net is in the rear cargo area and can be used to store small loads. The net should not be used to store heavy loads. Attach the loops on each side of the net to the hooks located on the sides of the rear cargo area.
