Opel Insignia: Disc Brakes

Opel Insignia B 2018-2025 Service Manual / Brakes / Disc Brakes

Specifications

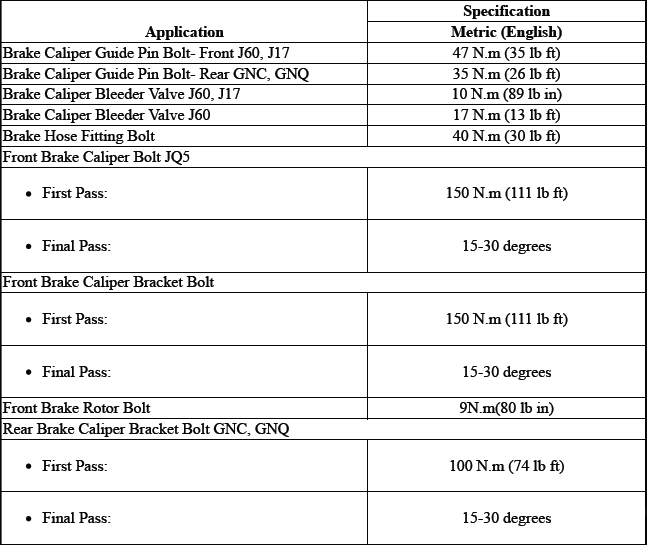

FASTENER SPECIFICATIONS

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Disc Brakes

Disc Brakes

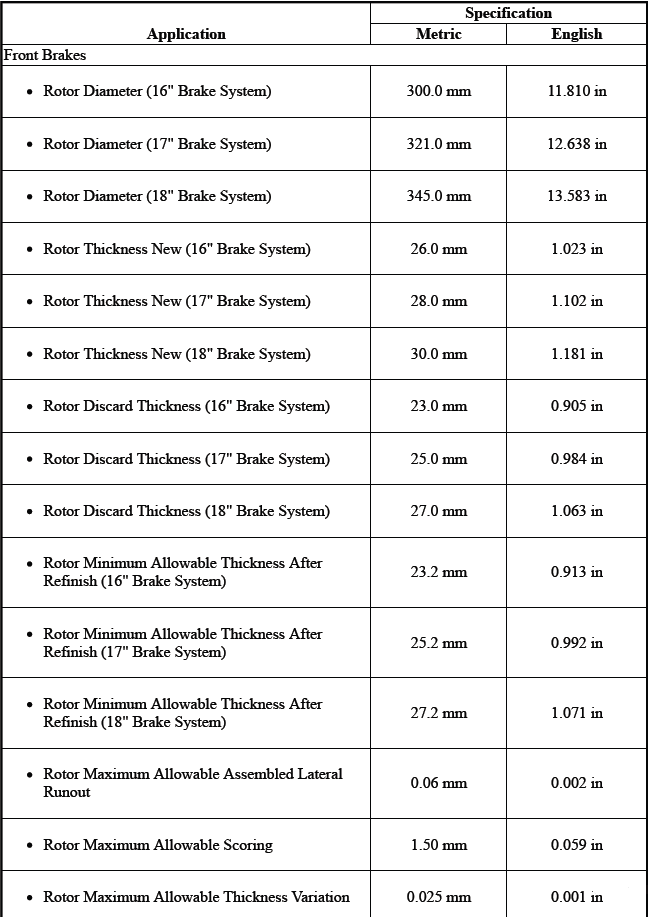

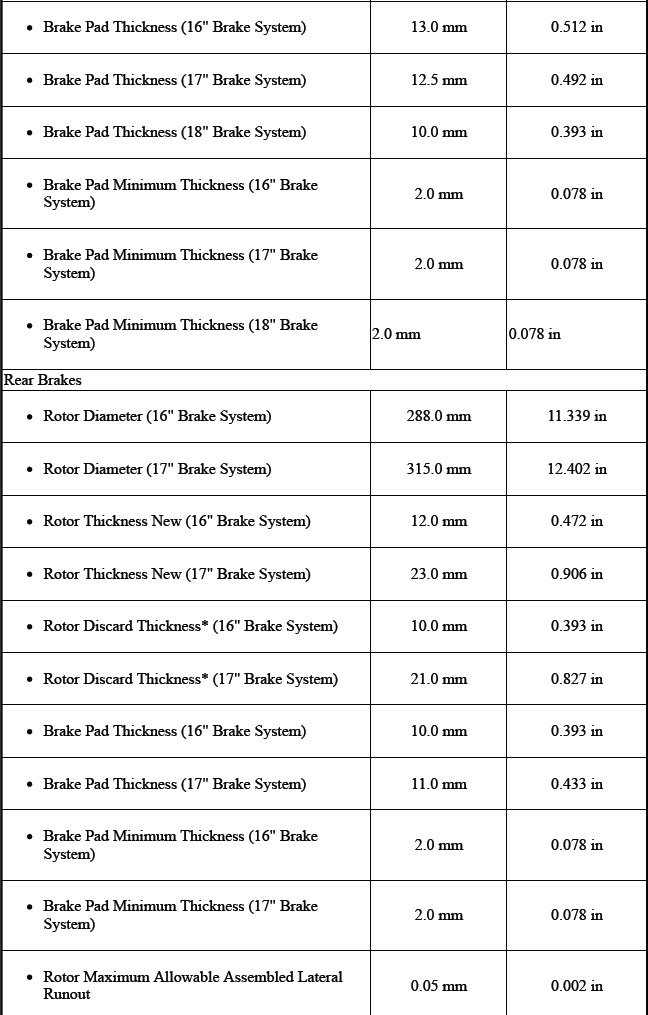

DISC BRAKE COMPONENT SPECIFICATIONS

Disc Brakes

Disc Brakes

Disc Brakes

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

The part codes (e.g. SC18) can be found in the electronic parts catalog (EPC) through the search function.

Disc Brakes
