Opel Insignia B 2018-2024 Service Manual / Brakes / Hydraulic Brakes / Specifications, Schematic Wiring Diagrams

SPECIFICATIONS

FASTENER SPECIFICATIONS

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Application

Brake Hose Fitting Gasket
Brake Pedal Retainer
Master Cylinder Seal

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Hydraulic Brakes

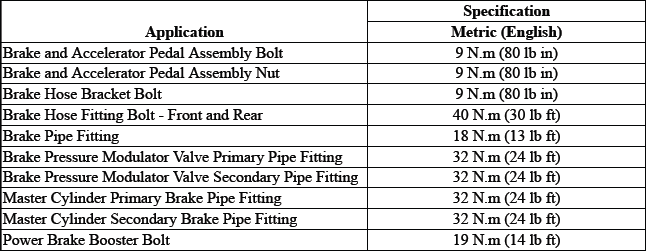

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Hydraulic Brakes

APPROXIMATE FLUID CAPACITIES

Hydraulic Brakes

BRAKE COMPONENT SPECIFICATIONS

Hydraulic Brakes

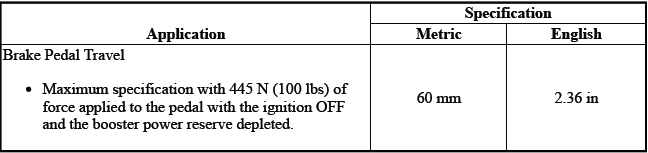

BRAKE SYSTEM SPECIFICATIONS

Hydraulic Brakes

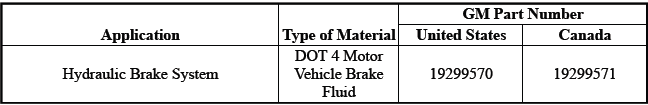

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Hydraulic Brakes

SCHEMATIC WIRING DIAGRAMS

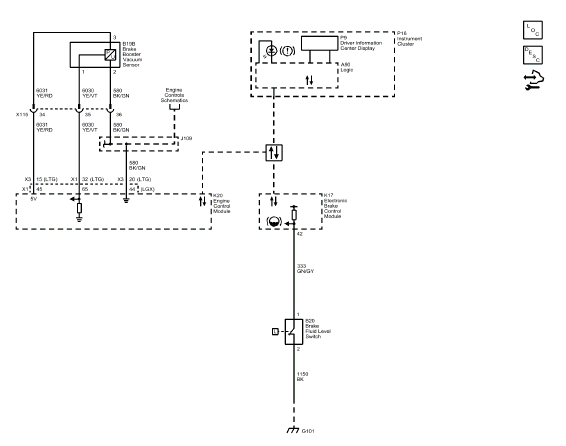

HYDRAULIC BRAKE WIRING SCHEMATICS

Hydraulic Brakes

Hydraulic Brakes
