Opel Insignia: Park Brake

SPECIFICATIONS

FASTENER SPECIFICATIONS

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Application

Rear Parking Brake Actuator Seal

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Park Brake

SCHEMATIC AND WIRING DIAGRAMS

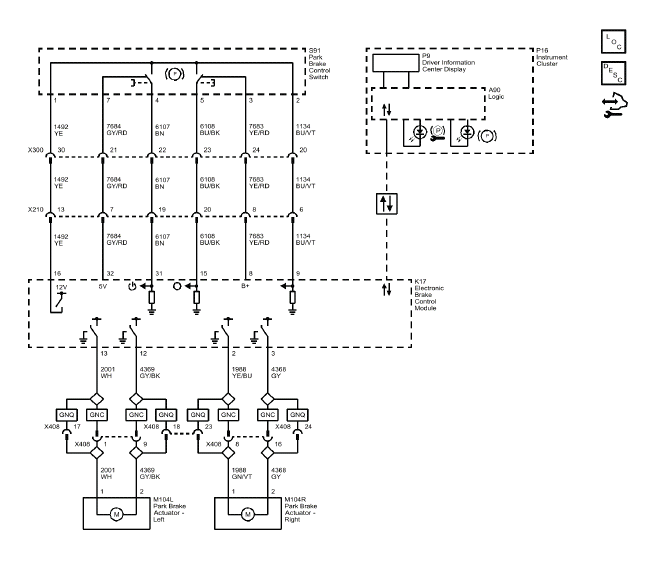

PARK BRAKE SYSTEM WIRING SCHEMATICS

Electric Park Brake

Park Brake

READ NEXT:

 Diagnostic Information and Procedures

DTC C028F Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic appro

 Repair Instructions

Park Brake Calibration The park brakes do not require calibration often. Park brake calibration may be required after certain service procedures are performed. Some of these procedures are as follows

 Description and Operation

ELECTRONIC PARKING BRAKE DESCRIPTION Vehicles with the electric parking brake have a switch in the center console or on the dash, which takes the place of the manual parking brake system, the foot pe
