Opel Insignia B 2018-2026 Service Manual / Accessories and Equipment / Power Seats

SPECIFICATIONS

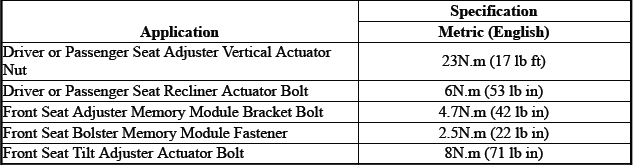

FASTENER TIGHTENING TORQUE SPECIFICATIONS

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Power Seats

SCHEMATIC WIRING DIAGRAMS

DRIVER SEAT WIRING SCHEMATICS

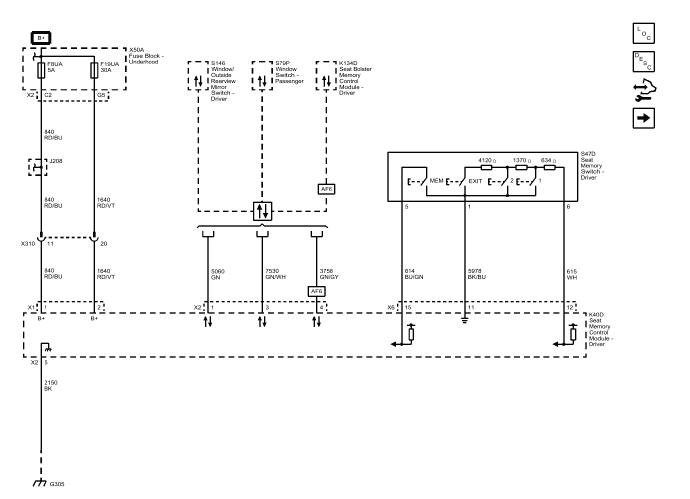

Power, Ground, Serial Data and Seat Memory Switch (A45/A44)

Power Seats

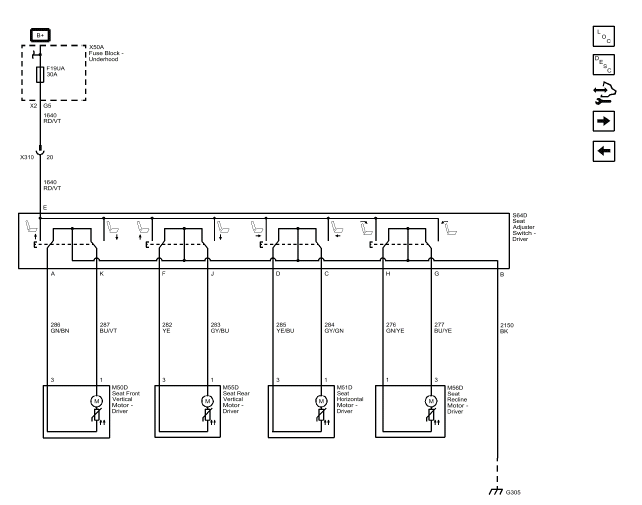

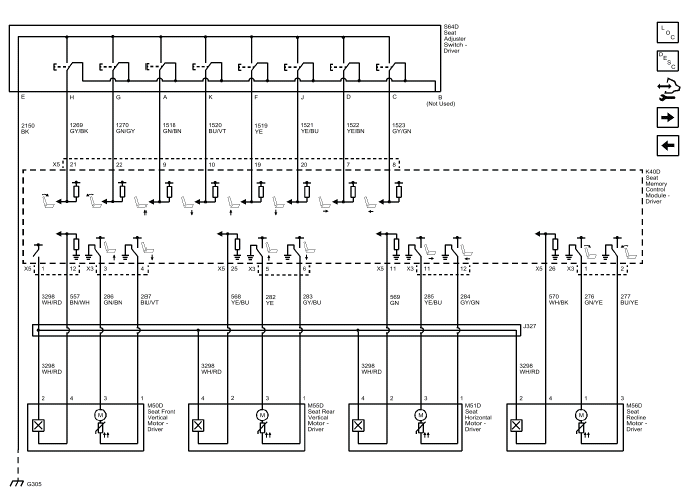

Seat Position (AE8+ (A45/A44) )

Power Seats

Seat Position (AE8- (A45/A44) )

Power Seats

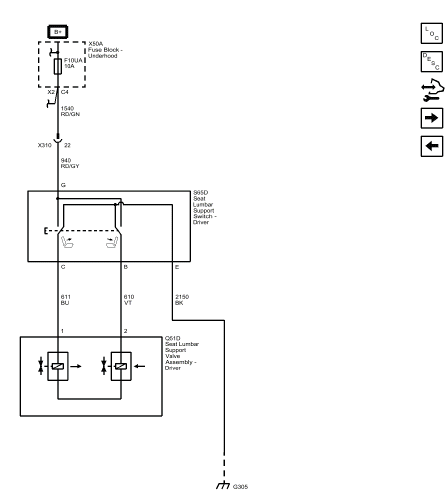

Lumbar (AL9)

Power Seats

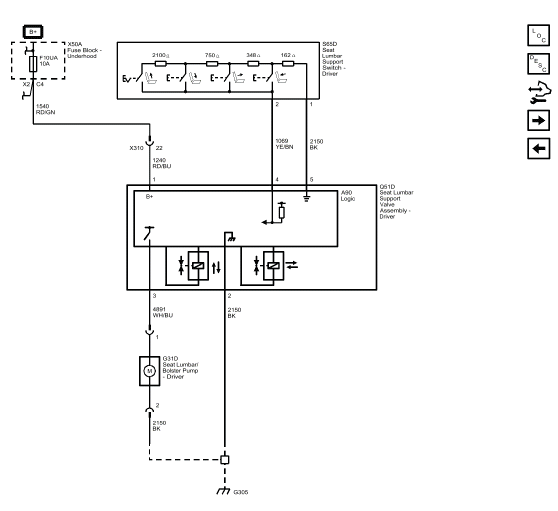

Lumbar (AVK-AF6)

Power Seats

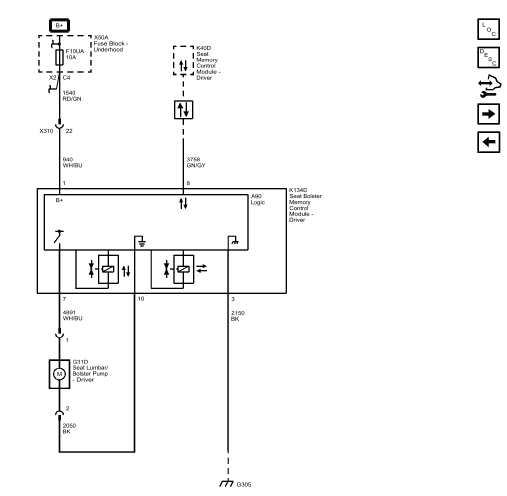

Power, Ground, Serial Data and Lumbar Support Pump (AVK+AF6)

Power Seats

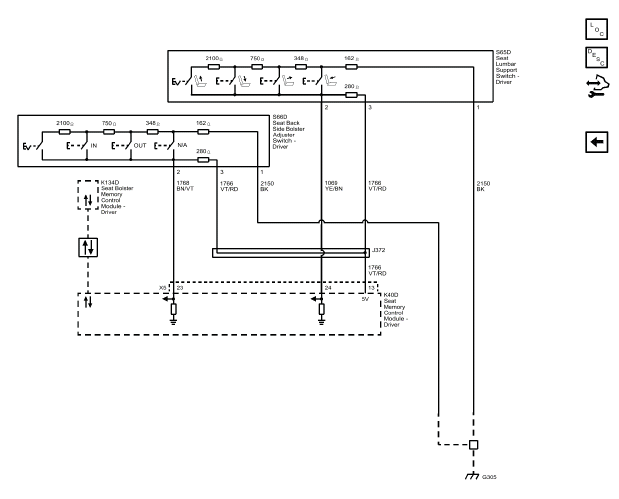

Lumbar Controls (AVK+AF6)

Power Seats

PASSENGER SEAT WIRING SCHEMATICS

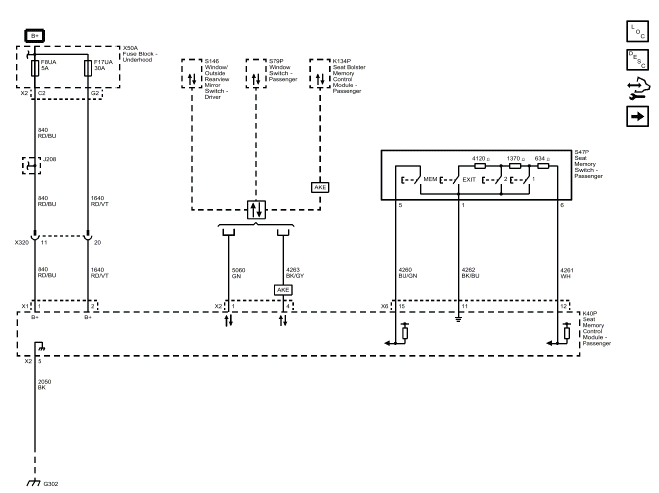

Power, Ground, Serial Data and Seat Memory Switch (A44)

Power Seats

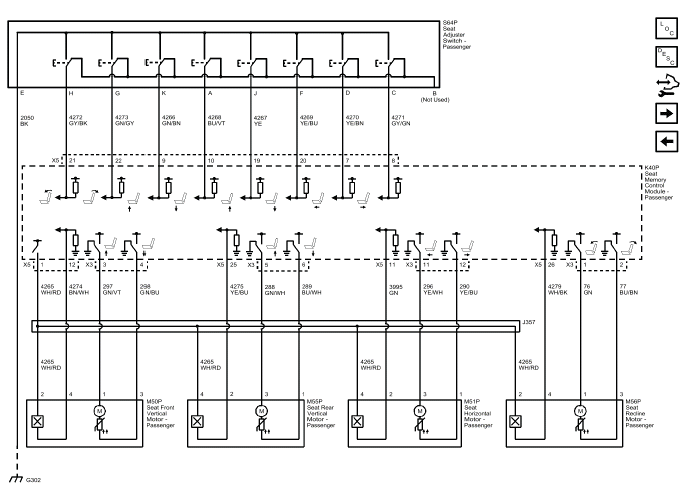

Seat Position (A44)

Power Seats

Power Seats

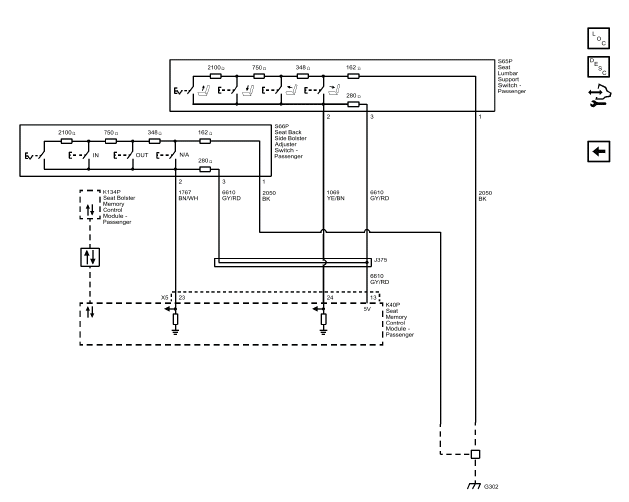

Lumbar (AT9)

Power Seats

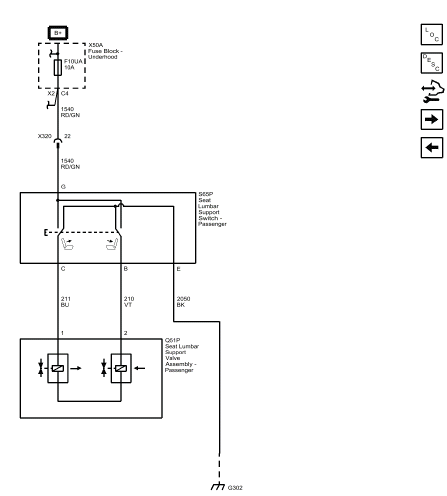

Lumbar (AVU-AKE)

Power Seats

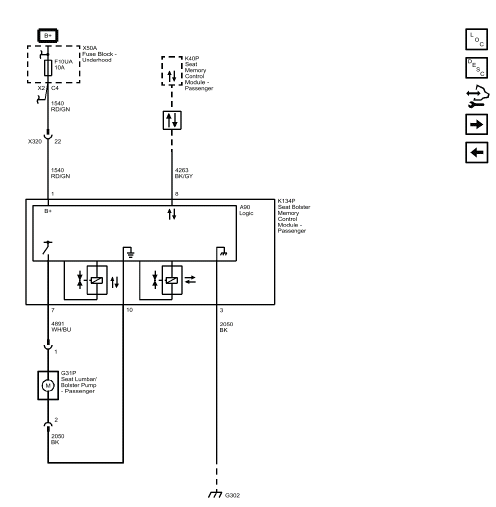

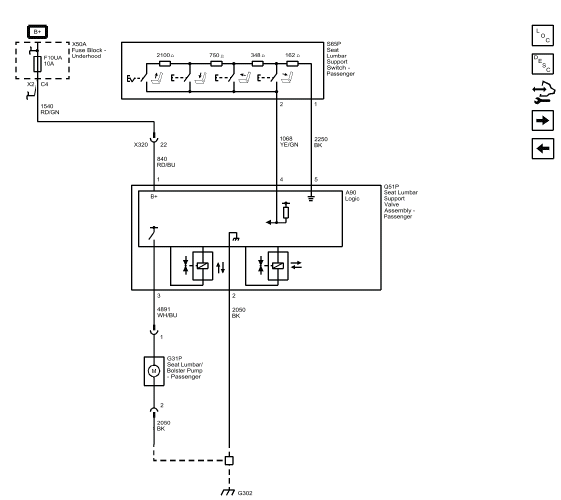

Power, Ground, Serial Data and Lumbar Support Pump (AVU+AKE)

Power Seats

Lumbar Controls (AVU+AKE)

Power Seats

REAR SEAT WIRING SCHEMATICS

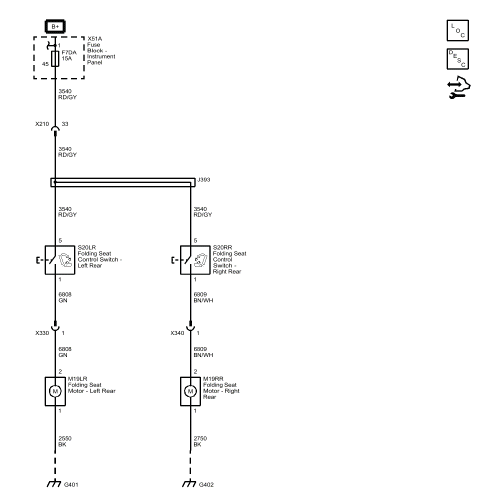

Folding Seat Control Switches and Motors (A9U)

Power Seats
