Opel Insignia: Electronic Suspension Control

Opel Insignia B 2018-2025 Service Manual / Suspension / Electronic Suspension Control

SPECIFICATIONS

FASTENER SPECIFICATIONS

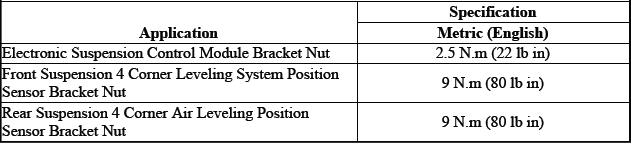

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Electronic Suspension Control

SCHEMATIC AND WIRING DIAGRAMS

ELECTRONIC SUSPENSION CONTROL WIRING SCHEMATICS

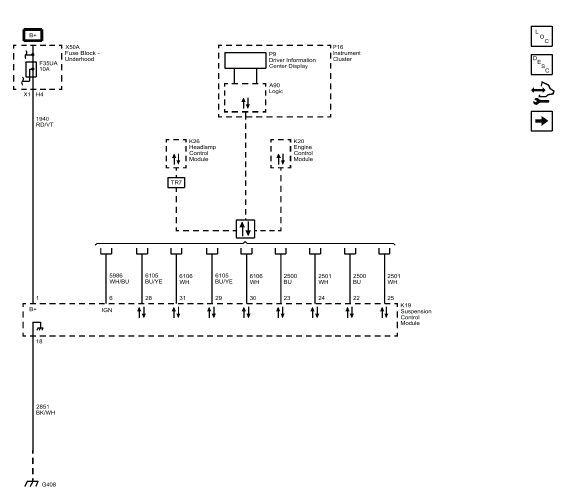

Module Power, Ground, and Serial Data (F45)

Electronic Suspension Control

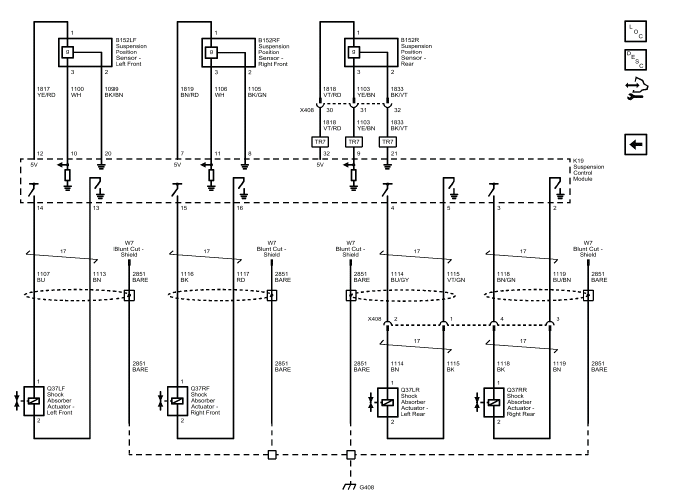

Sensors and Actuators (F45+GNQ)

Electronic Suspension Control
