Opel Wheel Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS

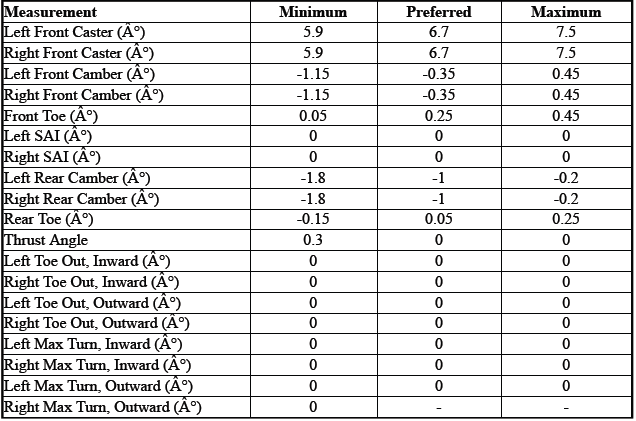

Insignia GNC 225/55 R17
![Opel Wheel Alignment Specifications](images/books/2615/index31(4).png)

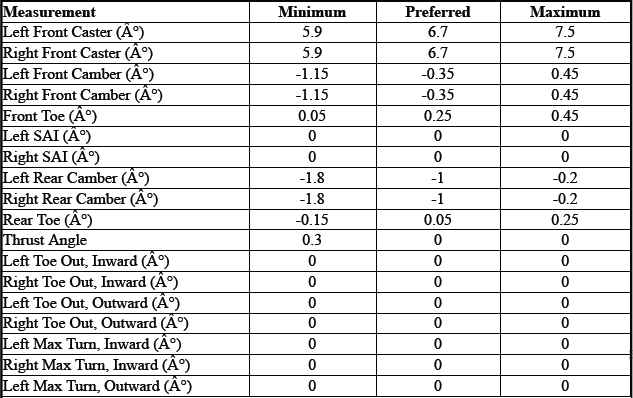

Insignia GNC 245/40 R19
![Opel Wheel Alignment Specifications](images/books/2615/index32(3).png)
![Opel Wheel Alignment Specifications](images/books/2615/index33(3).png)
Insignia GNC 245/45 R18
![Opel Wheel Alignment Specifications](images/books/2615/index34(3).png)
Insignia GNQ 225/55 R17
![Opel Wheel Alignment Specifications](images/books/2615/index35(3).png)

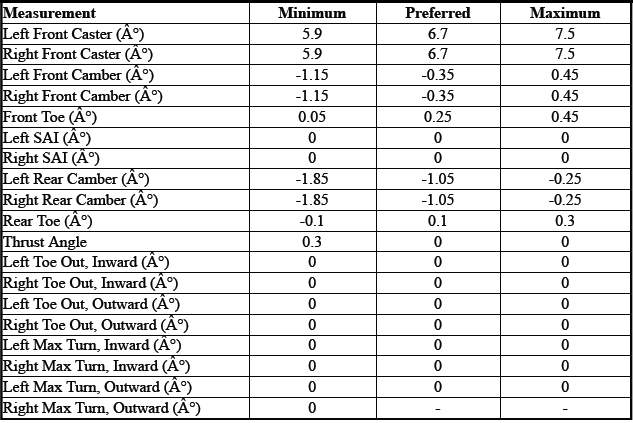

Insignia GNQ 245/40 R19
![Opel Wheel Alignment Specifications](images/books/2615/index36(3).png)

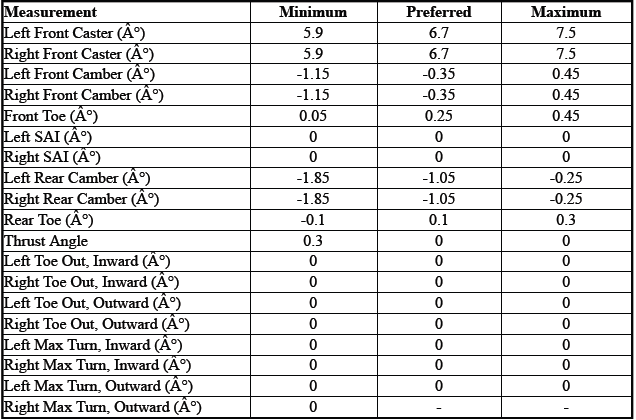

Insignia GNQ 245/45 R18
![Opel Wheel Alignment Specifications](images/books/2615/index37(3).png)
