Opel Insignia: Front Suspension

Specifications

FASTENER SPECIFICATIONS

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Front Suspension

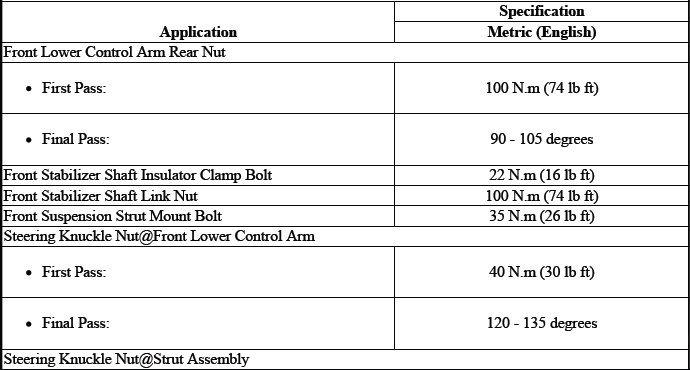

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Front Suspension

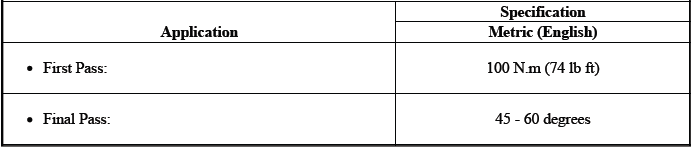

NOTE: All fasteners listed in this table can be reused after removal.

Front Suspension

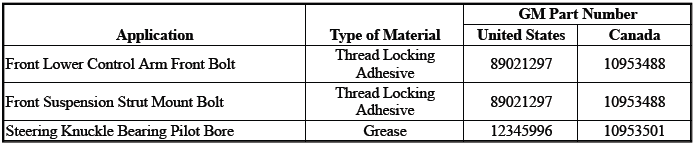

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Front Suspension

READ NEXT:

 Repair Instructions

Stabilizer Shaft Replacement Removal Procedure 1. Drivetrain and Front Suspension Cradle(1) - Remove. 2. Front Stabilizer Shaft Insulator Clamp Bolt(1) - Remove[4x]. 3. Front Stabilizer Shaft(1)@D

 Description and Operation

FRONT SUSPENSION DESCRIPTION AND OPERATION The front suspension has 2 primary purposes: Isolate the driver from irregularities in the road surface. Define the ride and handling characteristics of t

 Rear Suspension

Specifications FASTENER SPECIFICATIONS Single Use Threaded Fastener/Component Tightening Specifications NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW aft

SEE MORE:

 Rear Suspension

Specifications FASTENER SPECIFICATIONS Single Use Threaded Fastener/Component Tightening Specifications NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal. NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced wi

 Suspension General Diagnosis

SPECIFICATIONS TRIM HEIGHT SPECIFICATIONS Trim Height Specifications (P-R Height) - Hatchback NOTE: For 0% option vehicles add 1 mm to front and rear suspension values. For 100% option vehicles subtract 4 mm from front suspension values and substract 3 mm from rear suspension values. Trim Height
