Opel Insignia: Rear Drive Axle

SPECIFICATIONS

FASTENER SPECIFICATIONS

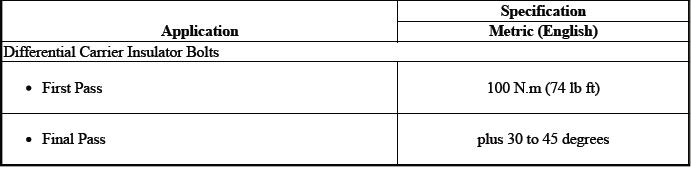

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Rear Drive Axle

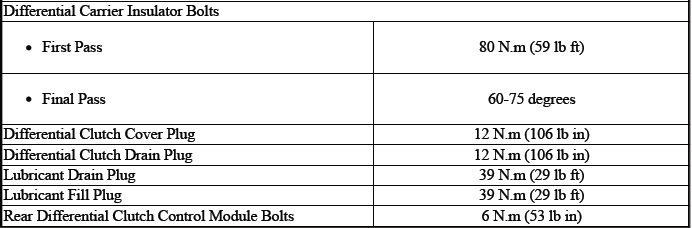

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Rear Drive Axle

Rear Drive Axle

APPROXIMATE FLUID CAPACITIES

Rear Drive Axle

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Rear Drive Axle

SCHEMATIC AND WIRING DIAGRAMS

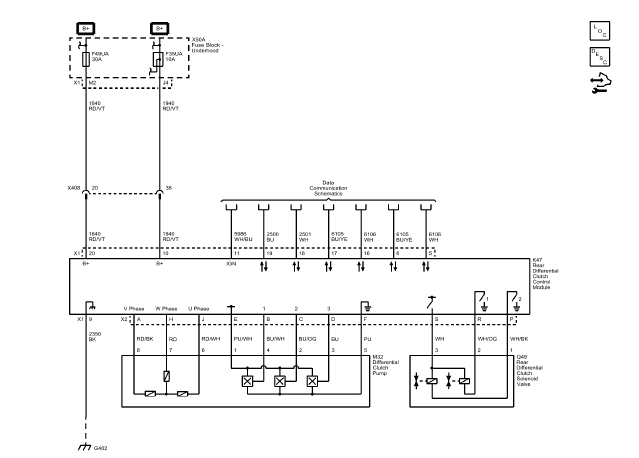

REAR AXLE WIRING SCHEMATICS

All-Wheel Drive (F46)

Rear Drive Axle
