Opel Insignia B 2018-2026 Service Manual / HVAC & Restraints / Seat Belts
SCHEMATIC WIRING DIAGRAMS

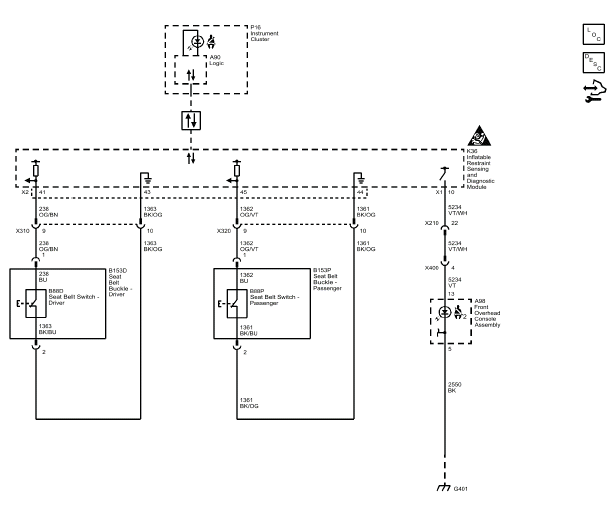

SEAT BELT WIRING SCHEMATICS
Seat Belts
.png)
READ NEXT:
Diagnostic Information and Procedures
DTC B0072 or B0073
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnosti
Repair Instructions
REPAIRS AND INSPECTIONS REQUIRED AFTER A COLLISION
WARNING: Restraint systems can be damaged in a collision. To help
avoid injury and ensure that all parts in need of replacement are replaced:
Repl
Description and Operation
SEAT BELT SYSTEM DESCRIPTION AND OPERATION
Seat Belts
Solid Line - Hard Wire I/O
Dash Line - Serial Data
A11 - Radio
B88D - Seat Belt Switch - Driver
B88P - Seat Belt Switch - Passenger
K36 - Inflata
