Opel Insignia: Storage Compartments

Warning: Do not store heavy or sharp objects in storage compartments.

In a crash, these objects may cause the cover to open and could result in injury.

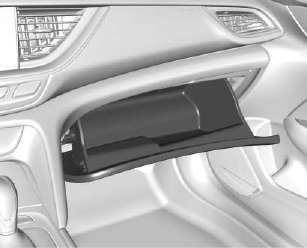

Glove Box

Lift up the handle to open the

Lift up the handle to open the glove box.

Cupholders

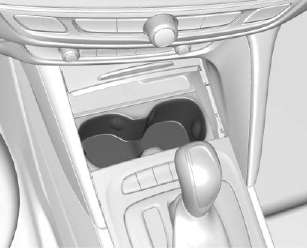

There are two cupholders in the

There are two cupholders in the front storage area. Slide the cover to access them.

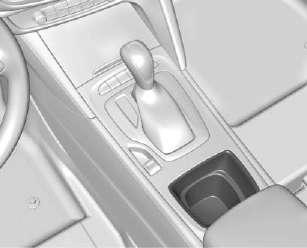

There is a cupholder in the center

There is a cupholder in the center console.

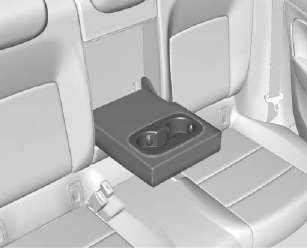

Pull the second row seat armrest

Pull the second row seat armrest down to access the cupholders.

Front Storage

To open the front storage

To open the front storage compartment, slide the cover forward.

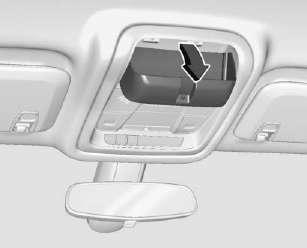

Sunglasses Storage

If equipped, sunglasses storage is

If equipped, sunglasses storage is on the overhead console. Press the fixed button on the cover and release to access.

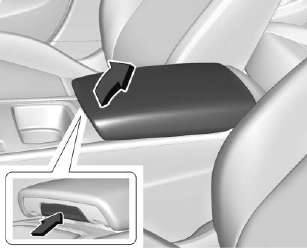

Armrest Storage

Press the button and lift to access

Press the button and lift to access the storage under the armrest.
