SPECIFICATIONS
FASTENER SPECIFICATIONS
Single Use Non-Threaded Fasteners/Components
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
Application
Power Steering Assist Motor Seal
Steering Gear Belt
Steering Gear Boot Inner Clamp
Steering Gear Bushing

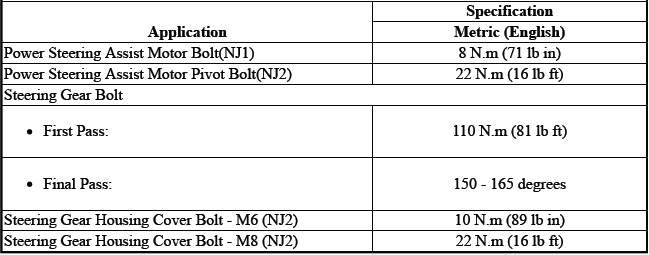

Single Use Threaded Fastener/Component Tightening Specifications
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)

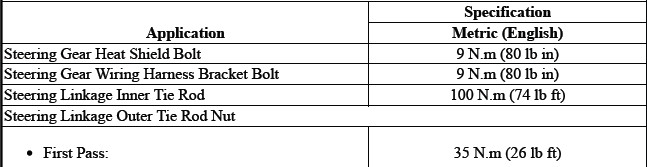

Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
.png)
ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS
.png)
SCHEMATIC AND WIRING DIAGRAMS

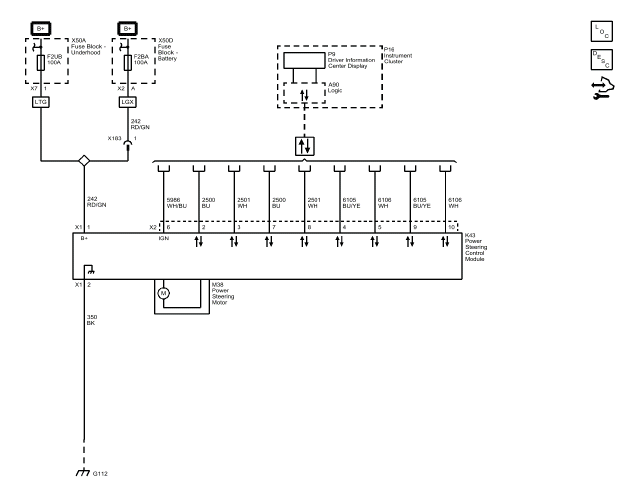

POWER STEERING WIRING SCHEMATICS
Power Steering
.png)
