Opel Insignia B 2018-2025 Service Manual / Brakes / Antilock Brake System / Specifications, Schematic Wiring Diagrams
SPECIFICATIONS
FASTENER SPECIFICATIONS

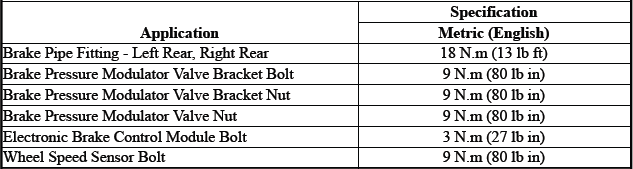

Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
SCHEMATIC WIRING DIAGRAMS
ANTILOCK BRAKE SYSTEM WIRING SCHEMATICS

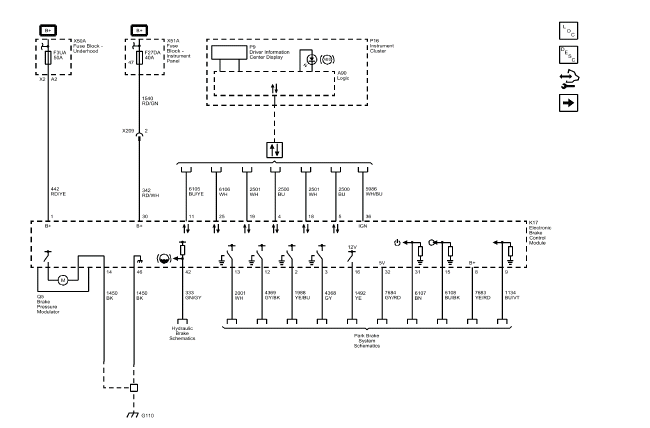

Power, Ground, Serial Data, and Subsystem References
.png)

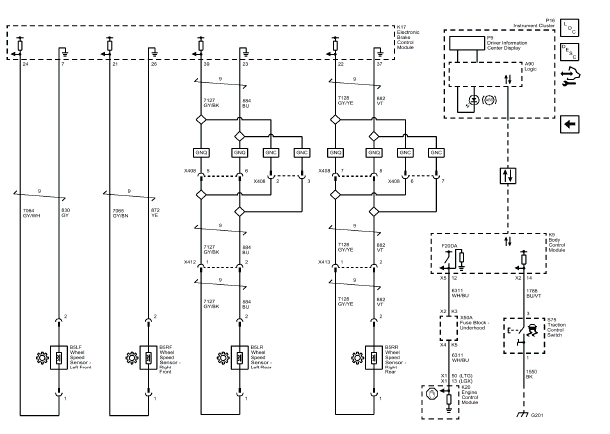

Wheel Speed Sensors and Traction Control Switch
.png)
