Opel Insignia: Wipers and Washers

SPECIFICATIONS

FASTENER SPECIFICATIONS

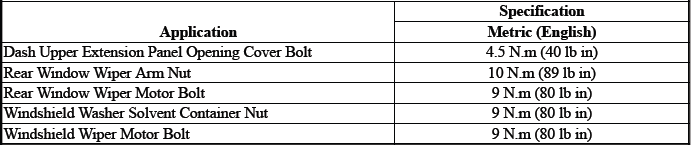

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Wipers and Washers

SCHEMATIC WIRING DIAGRAMS

WIPER/WASHER WIRING SCHEMATICS

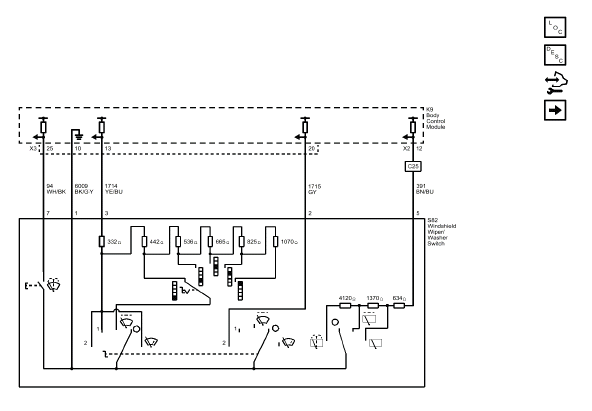

Controls

Wipers and Washers

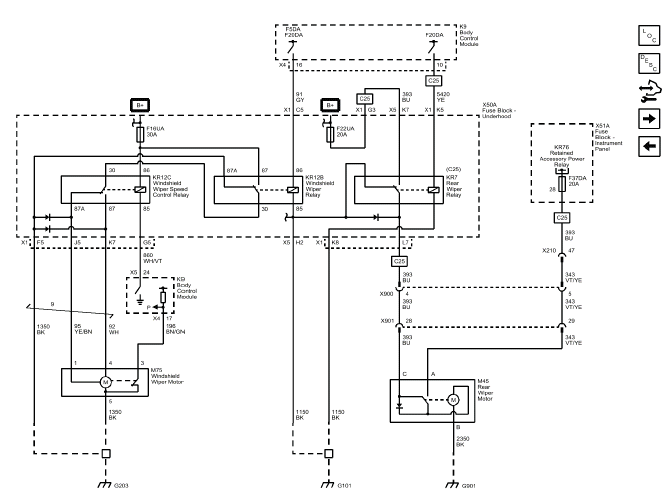

Wipers

Wipers and Washers

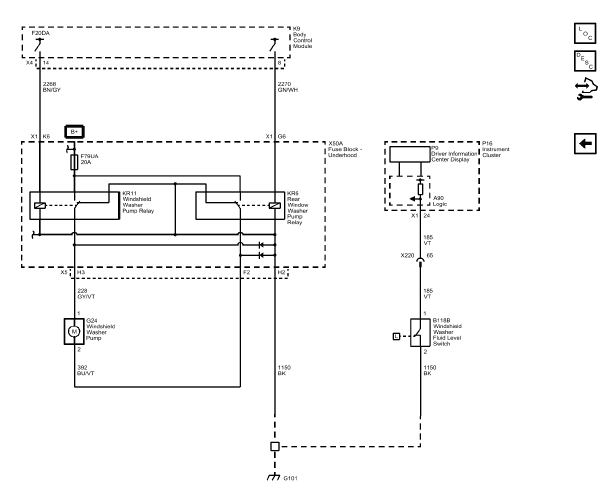

Washers

Wipers and Washers

READ NEXT:

 Diagnostic Information and Procedures

DTC B370A Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic appro

 Repair Instructions

Windshield Wiper and Washer Switch Replacement Preliminary Procedures 1. Steering Column Lower Trim Cover Replacement. 2. Reposition the steering column upper trim cover as necessary. Windshield W

 Description and Operation

WIPER/WASHER SYSTEM DESCRIPTION AND OPERATION Wiper/Washer System Components The wiper/washer system consists of the following electrical components: Windshield Wiper Relay Windshield Wiper Speed C
