Opel Insignia: Cruise Control System
Opel Insignia B 2018-2024 Service Manual / Accessories and Equipment / Cruise Control System
SPECIFICATIONS
FASTENER SPECIFICATIONS
.png)
SCHEMATIC WIRING DIAGRAMS

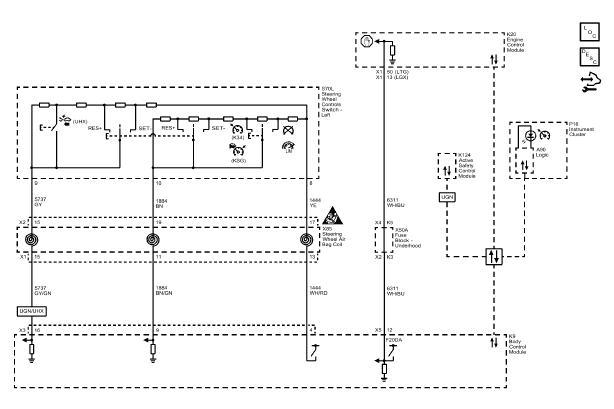

CRUISE CONTROL WIRING SCHEMATICS
Cruise Control
.png)
READ NEXT:
Diagnostic Information and Procedures
DTC B3623, B3794, P0564, P0565, P0567, P0568, P056C, P0580, P0581, P0589,
P0592, P0593,
P155A-P155C, or P162C
Diagnostic Instructions
Perform the Diagnostic System Check prior to using this diagnos
Repair Instructions
CRUISE CONTROL SWITCH REPLACEMENT
Removal Procedure
1. Steering Wheel Airbag - Remove.
2.
Cruise Control Switch Bolt (1) - Remove.
3.
Using a flat bladed plastic trim tool remove the cruise contro
Description and Operation
CRUISE CONTROL DESCRIPTION AND OPERATION (WITHOUT ADAPTIVE CRUISE
CONTROL)
DD - Serial Data - GMLAN High Speed
K20 - K20 Engine Control Module
S70L - S70L Steering Wheel Controls Switch - Left
P16 -
