CRUISE CONTROL SWITCH REPLACEMENT

Removal Procedure

1. Steering Wheel Airbag - Remove.

2.

Cruise Control System

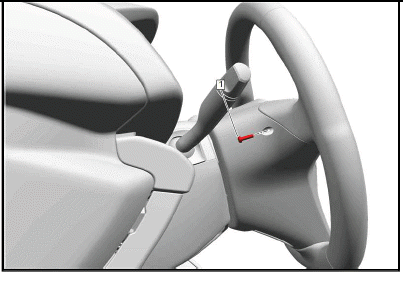

Cruise Control Switch Bolt (1) - Remove.

3.

Cruise Control System

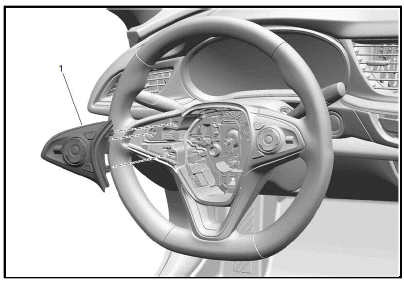

Using a flat bladed plastic trim tool remove the cruise control switch (1).

4. Disconnect the electrical connector.

Installation Procedure

1.

Cruise Control System

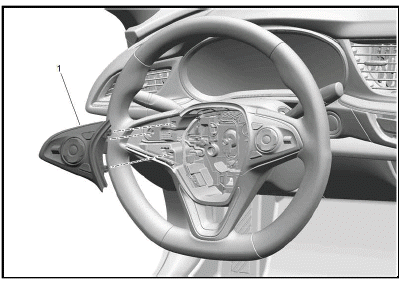

Cruise Control Switch(1) - Install.

2. Connect the electrical connector.

3.

Cruise Control System

CAUTION: Fastener Caution.

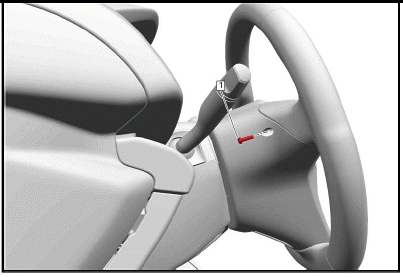

Cruise Control Switch Bolt (1) - Install and tighten1.5 N.m (13 lb in).

4. Steering Wheel Airbag - Install.
