Opel Insignia: Displays and Gauges
SPECIFICATIONS
FASTENER SPECIFICATIONS
Reusable Threaded Fastener Tightening Specifications
NOTE:
All fasteners listed in this table can be reused after removal.
.png)
SCHEMATIC AND WIRING DIAGRAMS
INSTRUMENT CLUSTER WIRING SCHEMATICS

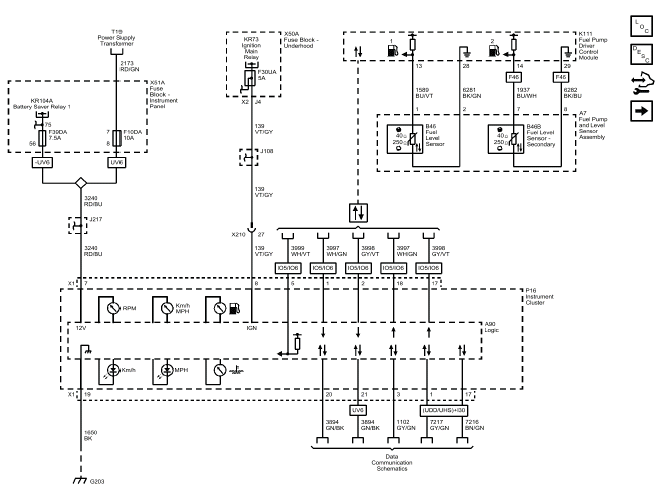

Power, Ground, Serial Data and Gauges
.png)

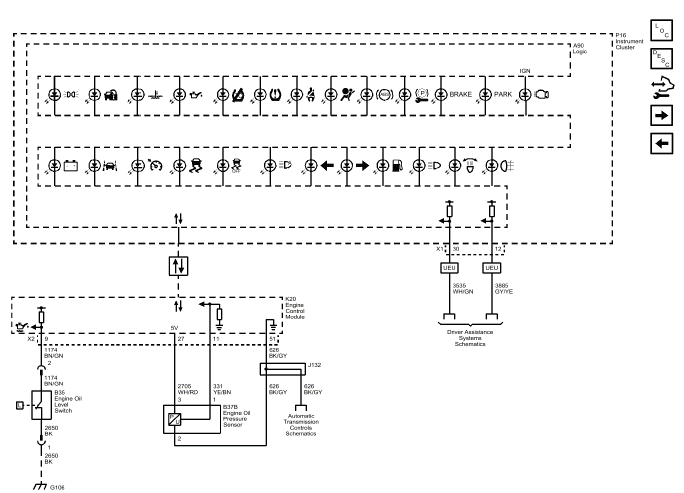

Indicators (LGX)
.png)

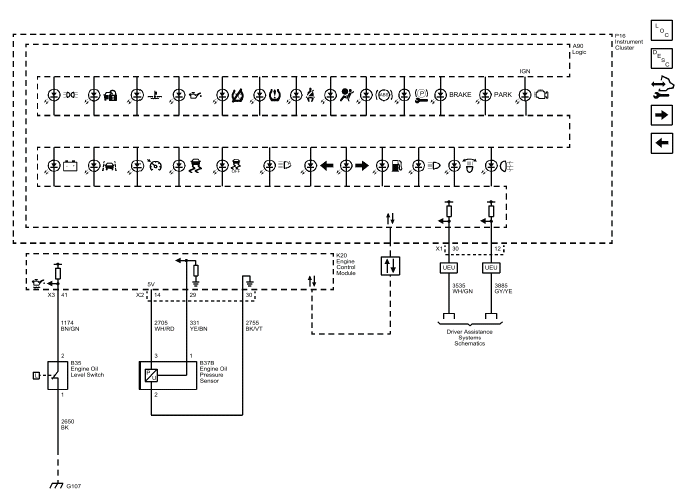

Indicators (LTG)
.png)

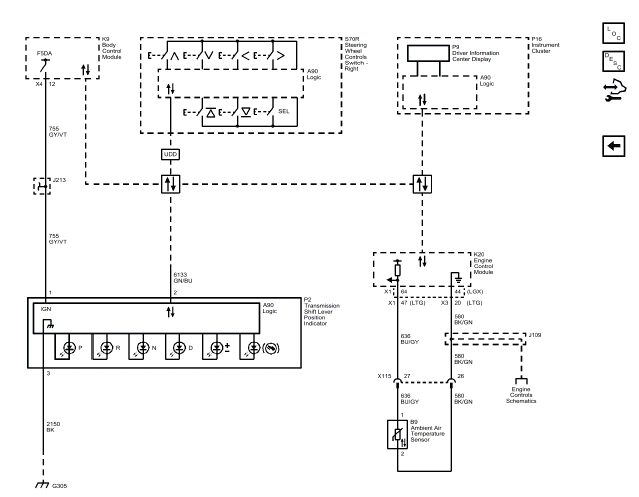

Driver Information and Shift Lever Indicator
.png)
HEAD-UP DISPLAY WIRING SCHEMATICS

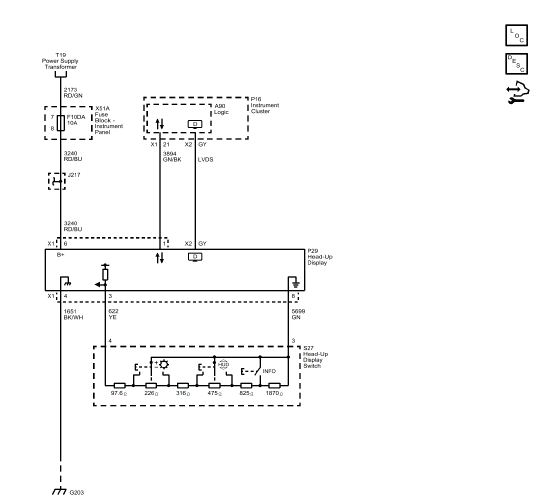

Head-Up Display (UV6)
.png)
AUDIBLE WARNINGS WIRING SCHEMATICS

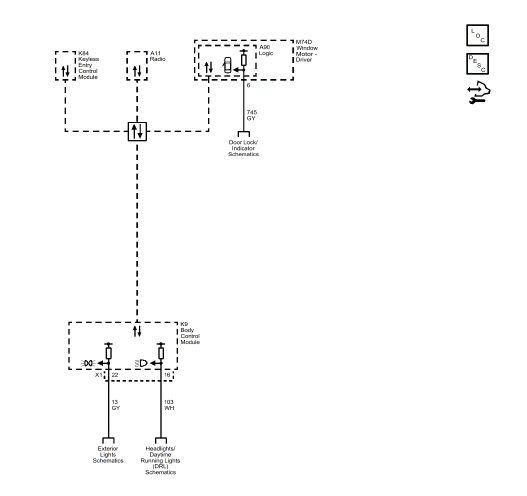

Audible Warning
.png)
