Opel Insignia: Diagnostic Information and Procedures

DTC B154A or B154B

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B154A 39

Driver Mirror Internal Malfunction

DTC B154B 39

Passenger Mirror Internal Malfunction

Circuit/System Description

The outside mirror switch and passenger window switch are on a serial data circuit with the memory seat module as the master. The mirror select and directional control switches are inputs to the memory seat module through the serial data circuit. When the memory seat module receives switch inputs from the outside mirror switch, mirror output commands are sent to the appropriate switch through the serial data circuit. The outside mirror switch and passenger window switch control the left and right outside rear view mirrors through bi-directional motor control circuits. The motor control circuits are floating while in an inactive state and the switches will apply power and ground to the control circuits as necessary to move the mirror in the commanded direction.

Mirror position is determined by both horizontal and vertical position sensors in each of the power mirrors. The outside mirror switch and passenger window switch supply a 5 V reference, low reference, and horizontal and vertical position signal circuits to these sensors. The signal circuits are referenced from 5 V by the switches and the signal circuit voltage levels represent the mirror positions. The mirror positions are sent to the memory seat module through the serial data circuit where they are stored for memory mirror operation. When the memory seat module receives a memory recall command, the memory seat module will send the go to position commands to the outside mirror switch and passenger window switch. The switches will then drive the appropriate mirror motors to the commanded position sensor settings.

Conditions for Running the DTC

Battery voltage must be between 9 - 16 V.

Conditions for Setting the DTC

B154A 39

An internal malfunction has been detected by the outside rearview mirror switch while commanding the driver outside rearview mirror UP, DOWN, LEFT or RIGHT.

B154B 39

An internal malfunction has been detected by the outside rearview mirror switch while commanding the passenger outside rearview mirror UP, DOWN, LEFT or RIGHT.

Action Taken When the DTC Sets

The affected outside rearview mirror will be inoperative.

Conditions for Clearing the DTC

B154A 39

The driver outside rearview mirror must be replaced before the DTC can be cleared.

B154B 39

The passenger outside rearview mirror must be replaced before the DTC can be cleared.

Reference Information

Schematic Reference

Outside Rearview Mirror Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Outside Mirror Description and Operation (With A45)Outside Mirror Description and Operation (Without A45)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Verification

1. Ignition ON.

2. Verify the A9A Outside Rearview Mirror - Driver moves when commanding the Driver Mirror Horizontal Movement Right/Left and Driver Mirror Vertical Movement Up/Down with a scan tool.

  • If the A9A Outside Rearview Mirror - Driver does not move RIGHT or LEFT or UP or DOWN

Replace the M77D Outside Rearview Mirror Motor - Driver.

  • Go to next step: If the A9A Outside Rearview Mirror-Driver moves RIGHT, LEFT, UP and DOWN

3. Verify the A9B Outside Rearview Mirror-Passenger moves when commanding the Passenger Mirror Horizontal Movement Right/Left and Passenger Mirror Vertical Movement Up/Down with a scan tool.

  • If the A9B Outside Rearview Mirror-Passenger does not move RIGHT or LEFT or UP or DOWN

Replace the M77P Outside Rearview Mirror Motor - Passenger.

  • Go to next step: If the A9B Outside Rearview Mirror-Passenger moves RIGHT, LEFT, UP and DOWN

4. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

Outside Rearview Mirror Actuator Replacement.

Symptoms - Mirrors

NOTE: The following steps must be completed before using the symptom tables.

1. Perform the Diagnostic System Check - Vehicle before using the Symptom Tables in order to verify that all of the following are true:

  • There are no DTCs set.
  • The control modules can communicate via the serial data link.

2. Review the system operation in order to familiarize yourself with the system functions. Refer to the following system descriptions:

  • Outside Mirror Description and Operation (With A45)Outside Mirror Description and Operation (Without A45)
  • Automatic Day-Night Mirror Description and Operation

Visual/Physical Inspection

  • Inspect for aftermarket devices which could affect the operation of the system. Refer to Checking Aftermarket Accessories.
  • Inspect the easily accessible or visible system components for obvious damage or conditions which could cause the symptom.

Intermittent

Faulty electrical connections or wiring may be the cause of intermittent conditions. Refer to Testing for Intermittent Conditions and Poor Connections.

Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

  • Heated Mirrors Malfunction
  • Automatic Day-Night Mirrors Malfunction
  • Power Mirror Malfunction (With A45)Power Mirror Malfunction (Without A45)

HEATED MIRRORS MALFUNCTION

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

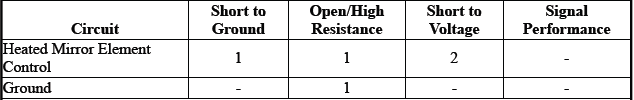

Diagnostic Fault Information

Mirrors

1. Heated Mirror Inoperative
2. Heated Mirror Always On

Circuit/System Description

The rear defogger relay supplies voltage to the outside rearview mirror heater elements based on the current state of the rear window defogger. The relay supplies B+ through the driver/passenger mirror heating element control circuit when a request is received.

Reference Information

Schematic Reference

Outside Rearview Mirror Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Outside Mirror Description and Operation (With A45)Outside Mirror Description and Operation (Without A45)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Verification

1. Engine running.

2. Verify the E18 Rear Defogger Grid turns ON and OFF when commanding the Rear Defogger On and Off with a scan tool.

  • If the E18 Rear Defogger Grid does not turn ON and OFF

Refer to Rear Window Defogger Malfunction.

  • Go to next step: If the E18 Rear Defogger Grid turns ON and OFF

3. Verify the E17D Outside Rearview Mirror Glass-Driver and the E17P Outside Rearview Mirror Glass-Passenger become warm when commanding the Rear Defogger On with a scan tool.

  • If the E17D Outside Rearview Mirror Glass-Driver and the E17P Outside Rearview Mirror Glass-Passenger do not become warm

Refer to Circuit/System Testing.

  • Go to next step: If both E17D Outside Rearview Mirror Glass-Driver and the E17P Outside Rearview Mirror Glass-Passenger become warm

4. All OK.

Circuit/System Testing

1. Ignition OFF and all vehicle systems OFF, disconnect the X1 and X2 harness connector at the appropriate E17 Outside Rearview Mirror Glass. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the ground circuit terminal A X2 and ground.

  • If 10 Ω or greater
  1. Ignition OFF.
  2. Test for less than 2 Ω in the ground circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, repair the open/high resistance in the ground connection.
  • Go to next step: If less than 10 Ω

3. Connect a test lamp between the control circuit terminal A X1 and ground.

4. Engine running.

5. Verify the test lamp turns ON and OFF when commanding the Rear Defogger On and Off with a scan tool.

  • If the lamp is always ON
  1. Ignition OFF, disconnect the X2 harness connector at X50A Fuse Block - Underhood, ignition ON.
  2. Test for less than 1 V between the control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, refer to Rear Window Defogger Malfunction.
  • If the lamp is always OFF
  1. Ignition OFF, disconnect the harness connector at X50A Fuse Block - Underhood, ignition ON.
  2. Test for infinite resistance between the control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω refer to Rear Window Defogger Malfunction.
  • Go to next step: If the lamp turns on and off

6. Replace the E17 Outside Rearview Mirror Glass.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

Outside Rearview Mirror Glass Replacement.

Automatic Day-Night Mirrors Malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category

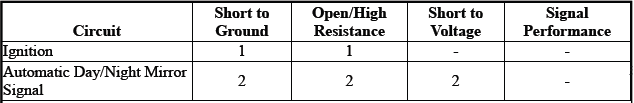

Diagnostic Fault Information

Mirrors

Mirrors

1. Inside and Outside Rearview Mirror Automatic Dimming Malfunction
2. Outside Rearview Mirror Automatic Dimming Malfunction

Circuit/System Description

The inside rearview mirror uses 2 photocell sensors. One sensor is the rear light sensor, located on the face side of the mirror, facing the rear of the vehicle. The rear light sensor is used to determine light conditions present at the mirror face. The other sensor is the front light sensor, located on the backside of the mirror, facing the front of the vehicle. The front light sensor is used to determine the exterior light conditions at the front of the vehicle. With a low exterior light condition detected by the front light sensor and a high light condition from the rear light sensor, the inside rearview mirror will automatically darken the face of the inside rearview mirror and the driver outside rearview mirror. The inside rearview mirror provides a signal circuit and a low reference circuit to the driver mirror face to darken the mirror when needed.

With the gear selector lever in the REVERSE position and the engine running, backup lamp control voltage is supplied as an input to the inside rearview mirror. The mirror monitors this input to disable the automatic day-night feature. This allows the driver to see objects in the mirror clearly when backing up, regardless of the rear light sensor status.

Reference Information

Schematic Reference

  • Inside Rearview Mirror Wiring Schematics
  • Outside Rearview Mirror Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Automatic Day-Night Mirror Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Verification

1. Ignition ON.

2. Cover the windshield with a blanket or other suitable item.

3. Verify the A10 Inside Rearview Mirror face dims when shining a bright light into the rear light sensor

  • If the A10 Inside Rearview Mirror does not dim

Refer to Circuit/System Testing - Inside Review Mirror Dimming Inoperative

  • Go to next step: If the A10 Inside Rearview Mirror dims

4. Verify the A10 Inside Rearview Mirror face transitions from dim to bright while commanding the Backup Lamps Active and Inactive with a scan tool.

  • If the A10 Inside Rearview Mirror does not transition between dim and bright.

Refer to Circuit/System Testing - Day-Night Disable Malfunction

  • Go to next step: If the A10 Inside Rearview Mirror transitions between bright and dim states

5. Verify the A9A Outside Rearview Mirror-Driver face dims when shining a bright light into the rear light sensor.

  • If the A9A Outside Rearview Mirror-Driver does not dim

Refer to Outside Rearview Mirror Dimming Malfunction.

  • Go to next step: If the A9A Outside Rearview Mirror-Driver dims

6. Verify the A9A Outside Rearview Mirror-Driver face transitions from dim to bright while commanding the Backup Lamps Active and Inactive with a scan tool.

  • If the A9A Outside Rearview Mirror-Driver does not transition between bright and dim states

Refer to Outside Rearview Mirror Dimming Malfunction.

  • Go to next step: If the A9A Outside Rearview Mirror-Driver transitions between bright and dim states

7. All OK.

Circuit/System Testing

Inside Review Mirror Dimming Inoperative

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A10 Inside Rearview Mirror. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the ground circuit terminal 5 and ground.

  • If 10 Ω or greater
  1. Ignition OFF, remove the test lamp.
  2. Test for less than 2 Ω in the ground circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, repair the open/high resistance in the ground connection.
  • Go to next step: If less than 10 Ω

3. Ignition ON.

4. Verify a test lamp illuminates between the ignition circuit terminal 2 and ground.

If the test lamp does not illuminate and the circuit fuse is good

  1. Ignition OFF, remove the test lamp.
  2. Test for less than 2 Ω in the ignition circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF, remove the test lamp.
  2. Test for infinite resistance between the ignition circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for infinite resistance between the signal circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • If infinite resistance, replace the A10 Inside Rearview Mirror
  • Go to next step: If the test lamp illuminates

5. Replace the A10 Inside Rearview Mirror.

Day-Night Disable Malfunction

1. Ignition OFF, disconnect the harness connector at the A10 Inside Rearview Mirror. Ignition ON 2. Connect a test lamp between the control circuit terminal 1 and ground 3. Verify the test lamp turns ON and OFF while commanding the Backup Lamps Active and Inactive with a scan tool.

  • If the test lamp is always OFF
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit terminal 1 and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, refer to Backup Lamps Malfunction.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, refer to Backup Lamps Malfunction
  • Go to next step: If the test lamp turns ON and OFF

4. Replace the A10 Inside Rearview Mirror.

Outside Rearview Mirror Dimming Malfunction

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A9A Outside Rearview Mirror-Driver. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the low reference circuit terminal 16 and ground.

  • If 10 Ω or greater
  1. Ignition OFF, disconnect the harness connector at the A10 Inside Rearview Mirror.
  2. Test for less than 2 Ω in the low reference circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the A10 Inside Rearview Mirror.
  • Go to next step: If less than 10 Ω

3. Ignition ON.

4. Test for less than 1 V between the control circuit terminal 2 and ground.

  • If 1 V or greater
  1. Ignition OFF, disconnect the harness connector at the A10 Inside Rearview Mirror, ignition ON.
  2. Test for less than 1 V between the control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V replace the A10 Inside Rearview Mirror.
  • Go to next step: If less than 1 V

5. Ignition ON, headlamps ON, vehicle in PARK, cover the front light sensor with a towel or other suitable item. Shine a flashlight at the rear light sensor.

6. Test for greater than 1 V between the control circuit terminal 2 and ground.

  • If 1 V or less
  1. Ignition OFF, disconnect the harness connector at the A10 Inside Rearview Mirror, ignition ON.
  2. Test for infinite resistance between the control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, test or replace the A10 Inside Rearview Mirror.
  • Go to next step: If greater than 1 V

7. Test or replace A9A Outside Rearview Mirror-Driver.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Inside Rearview Mirror Replacement
  • Outside Rearview Mirror Glass Replacement

Power Mirror Malfunction (with A45)

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

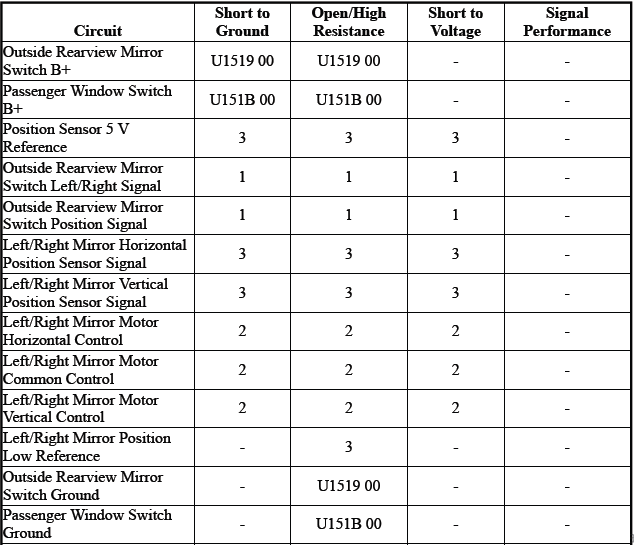

Diagnostic Fault Information

Mirrors

1. Outside Rearview Mirror Switch Malfunction
2. Driver or Passenger Outside Power Mirror Malfunction
3. Power Mirror Memory Feature Malfunction

Circuit/System Description

The outside mirror switch and passenger window switch are on a serial data circuit with the memory seat module as the master. The mirror select and directional control switches are inputs to the memory seat module through the serial data circuit. When the memory seat module receives switch inputs from the outside mirror switch, mirror output commands are sent to the appropriate switch through the serial data circuit. The outside mirror switch and passenger window switch control the left and right outside rear view mirrors through bi-directional motor control circuits. The motor control circuits are floating while in an inactive state and the switches will apply power and ground to the control circuits as necessary to move the mirror in the commanded direction.

Mirror position is determined by both horizontal and vertical position sensors in each of the power mirrors. The outside mirror switch and passenger window switch supply a 5 V reference, low reference, and horizontal and vertical position signal circuits to these sensors. The signal circuits are referenced from 5 V by the switches and the signal circuit voltage levels represent the mirror positions. The mirror positions are sent to the memory seat module through the serial data circuit where they are stored for memory mirror operation. When the memory seat module receives a memory recall command, the memory seat module will send the go to position commands to the outside mirror switch and passenger window switch. The switches will then drive the appropriate mirror motors to the commanded position sensor settings.

Reference Information

Schematic Reference

Outside Rearview Mirror Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Outside Mirror Description and Operation (With A45)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Verification

1. Ignition ON.

2. Verify the scan tool Mirror Select Switch parameter changes from None to Left and Right when cycling the S146 Outside Rearview Mirror Switch.

  • If the parameter does not change

Refer to Circuit/System Testing - Outside Rearview Mirror Switch Malfunction.

  • Go to next step: If the parameter changes

3. Verify the scan tool Mirror Direction Switch parameter changes from Inactive to Up, Down, Right and Left when cycling the S146 Outside Rearview Mirror Switch.

  • If the parameter does not change

Refer to Circuit/System Testing - Outside Rearview Mirror Switch Malfunction.

  • Go to next step: If the parameter changes

4. Verify the A9A Outside Rearview Mirror - Driver moves when commanding the Driver Mirror Horizontal Movement Right/Left and Driver Mirror Vertical Movement Up/Down with a scan tool.

  • If the A9A Outside Rearview Mirror - Driver does not move RIGHT or LEFT or UP or DOWN

Refer to Circuit/System Testing - Driver Outside Mirror Movement Malfunction.

  • Go to next step: If the A9A Outside Rearview Mirror - Driver moves RIGHT, LEFT, UP and DOWN

5. Verify the scan tool Driver Mirror Vertical Position parameters are between 0.2 - 4.8 V and change when commanding the Driver Mirror Vertical Movement Up/Down with a scan tool.

  • If not between 0.2 - 4.8 V or does not change

Refer to Circuit/System Testing - Driver Mirror Position Sensor Circuit Test.

  • Go to next step: If between 0.2 - 4.8 V and changes

6. Verify the scan tool Driver Mirror Horizontal Position parameters are between 0.2 - 4.8 V and change when commanding the Driver Mirror Horizontal Movement Right/Left with a scan tool.

  • If not between 0.2 - 4.8 V or does not change

Refer to Circuit/System Testing - Driver Mirror Position Sensor Circuit Test.

  • Go to next step: If between 0.2 - 4.8 V and changes

7. Verify the A9B Outside Rearview Mirror-Passenger moves when commanding the Passenger Mirror Horizontal Movement Right/Left and Passenger Mirror Vertical Movement Up/Down with a scan tool.

  • If the A9B Outside Rearview Mirror-Passenger does not move RIGHT or LEFT or UP or DOWN

Refer to Circuit/System Testing - Passenger Outside Mirror Movement Malfunction.

  • Go to next step: If the A9B Outside Rearview Mirror-Passenger moves RIGHT, LEFT, UP and DOWN

8. Verify the scan tool Passenger Mirror Vertical Position parameters are between 0.2 - 4.8 V and change while commanding the Passenger Mirror Horizontal Movement Right/Left with a scan tool.

  • If not between 0.2 - 4.8 V or does not change

Refer to Circuit/System Testing - Passenger Mirror Position Sensor Circuit Test.

  • Go to next step: If between 0.2 - 4.8 V and changes

9. Verify the scan tool Passenger Mirror Horizontal Position parameters are between 0.2 - 4.8 V and change while commanding the Passenger Mirror Vertical Movement Up/Down with a scan tool.

  • If not between 0.2 - 4.8 V or does not change

Refer to Circuit/System Testing - Passenger Mirror Position Sensor Circuit Test.

  • Go to next step: If between 0.2 - 4.8 V and changes

10. All OK.

Circuit/System Testing

Outside Rearview Mirror Switch Malfunction

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the ground circuit terminal 24 and ground.

  • If 10 Ω or greater
  1. Ignition OFF.
  2. Test for less than 2 Ω in the ground circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, repair the open/high resistance in the ground connection.
  • Go to next step: If less than 10 Ω

3. Verify a test lamp illuminates between the B+ circuit terminal 23 and ground.

  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF, remove the test lamp.
  2. Test for less than 2 Ω in the ignition circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF, remove the test lamp.
  2. Test for infinite resistance between the B+ circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for infinite resistance between the signal circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • If infinite resistance, replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp illuminates

4. Test or replace the S146 Outside Rearview Mirror Switch.

Driver Outside Mirror Movement Malfunction

1. Ignition OFF, disconnect the harness connector at the A9A Outside Rearview Mirror-Driver.

Ignition ON.

2. Connect a test lamp between the control circuit terminal 9 and control circuit terminal 12.

3. Verify the test lamp turns ON when commanding the Up and Down states with a scan tool.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S146 Outside Rearview Mirror Switch.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp turns ON during each of the commands

4. Connect a test lamp between the control circuit terminal 10 and control circuit terminal 12.

5. Verify the test lamp turns ON when commanding the Left and Right states with a scan tool.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S146 Outside Rearview Mirror Switch.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp turns ON during each of the commands

6. Test or replace the M77D Outside Rearview Mirror Motor-Driver.

Driver Mirror Position Sensor Circuit Test

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A9A Outside Rearview Mirror-Driver. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the low reference circuit terminal 3 and ground.

  • If 10 Ω or greater
  1. Ignition OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for less than 2 Ω in the low reference circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S146 Outside Rearview Mirror Switch.
  • Go to next step: If less than 10 Ω

3. Ignition ON.

4. Test for 4.8 - 5.2 V between the 5 V reference circuit terminal 17 and ground.

  • If less than 4.8 V
  1. Ignition OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between the 5 V reference circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the 5 V reference circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S146 Outside Rearview Mirror Switch.
  • If greater than 5.2 V
  1. Ignition OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between the 5 V reference circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S146 Outside Rearview Mirror Switch.
  • Go to next step: If between 4.8 - 5.2 V

5. Verify the scan tool Driver Mirror Vertical Position parameter is less than 4.6 V.

  • If 4.6 V or greater
  1. Ignition OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal 14 and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S146 Outside Rearview Mirror Switch.
  • Go to next step: If less than 4.6 V

6. Install a 3 A fused jumper wire between the signal circuit terminal 14 and the 5 V reference circuit terminal 17.

7. Verify the scan tool Driver Mirror Vertical Position or the parameter is greater than 0.6 V.

  • If 0.6 V or less
  1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between the signal circuit terminal 1 and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the signal circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S146 Outside Rearview Mirror Switch.
  • Go to next step: If greater than 0.6 V

8. Verify the scan tool Driver Mirror Horizontal Position parameter is less than 4.6 V.

  • If 4.6 V or greater
  1. Ignition OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal 7 and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S146 Outside Rearview Mirror Switch.
  • Go to next step: If less than 4.6 V

9. Install a 3 A fused jumper wire between the signal circuit terminal 7 and the 5 V reference circuit terminal 17.

10. Verify the scan tool Driver Mirror Horizontal Position or the parameter is greater than 0.6 V.

  • If 0.6 V or less
  1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between the signal circuit terminal 1 and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the signal circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S146 Outside Rearview Mirror Switch.
  • Go to next step: If greater than 0.6 V

11. Test or replace the M77D Outside Rearview Mirror Motor-Driver.

Passenger Outside Mirror Movement Malfunction

1. Ignition OFF, disconnect the harness connector at the A9B Outside Rearview Mirror-Passenger.

Ignition ON.

2. Connect a test lamp between the control circuit terminal 9 and control circuit terminal 12.

3. Verify the test lamp turns ON when commanding the Up and Down states with a scan tool.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the X2 harness connector at the S79P Window Switch-Passenger.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S79P Window Switch-Passenger.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the X2 harness connector at the S79P Window Switch-Passenger, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S79P Window Switch-Passenger
  • Go to next step: If the test lamp turns ON during each of the commands

4. Connect a test lamp between the control circuit terminal 10 and control circuit terminal 12.

5. Verify the test lamp turns ON when commanding the Left and Right states with a scan tool.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the X2 harness connector at the S79P Window Switch-Passenger.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S79P Window Switch-Passenger.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the X2 harness connector at the S79P Window Switch-Passenger, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S79P Window Switch-Passenger
  • Go to next step: If the test lamp turns ON during each of the commands

6. Test or replace the M77P Outside Rearview Mirror Motor-Passenger.

Passenger Mirror Position Sensor Circuit Test

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A9B Outside Rearview Mirror-Passenger. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the low reference circuit terminal 3 and ground.

  • If 10 Ω or greater
  1. Ignition OFF, disconnect the X2 harness connector at the S79P Window Switch-Passenger.
  2. Test for less than 2 Ω in the low reference circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S79P Window Switch-Passenger.
  • Go to next step: If less than 10 Ω

3. Ignition ON.

4. Test for 4.8 - 5.2 V between the 5 V reference circuit terminal 17 and ground.

  • If less than 4.8 V
  1. Ignition OFF, disconnect the X2 harness connector at the S79P Window Switch-Passenger.
  2. Test for infinite resistance between the 5 V reference circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the 5 V reference circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S79P Window Switch-Passenger.
  • If greater than 5.2 V
  1. Ignition OFF, disconnect the X2 harness connector at the S79P Window Switch-Passenger, ignition ON.
  2. Test for less than 1 V between the 5 V reference circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S79P Window Switch-Passenger.
  • Go to next step: If between 4.8 - 5.2 V

5. Verify the scan tool Passenger Mirror Vertical Position parameter is less than 4.6 V.

  • If 4.6 V or greater
  1. Ignition OFF, disconnect the X2 harness connector at the S79P Window Switch-Passenger, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal 9 and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S79P Window Switch-Passenger.
  • Go to next step: If less than 4.6 V

6. Install a 3 A fused jumper wire between the signal circuit terminal 9 and the 5 V reference circuit terminal 17.

7. Verify the scan tool Passenger Mirror Vertical Position or the parameter is greater than 0.6 V.

  • If 0.6 V or less
  1. Ignition OFF, remove the jumper wire, disconnect the X2 harness connector at the S79P Window Switch-Passenger.
  2. Test for infinite resistance between the signal circuit terminal 9 and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the signal circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S79P Window Switch-Passenger.
  • Go to next step: If greater than 0.6 V

8. Verify the scan tool Passenger Mirror Horizontal Position parameter is less than 4.6 V.

  • If 4.6 V or greater
  1. Ignition OFF, disconnect the X2 harness connector at the S79P Window Switch-Passenger, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal 7 and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, replace the S79P Window Switch-Passenger.
  • Go to next step: If less than 4.6 V

9. Install a 3 A fused jumper wire between the signal circuit terminal 7 and the 5 V reference circuit terminal 17.

10. Verify the scan tool Passenger Mirror Horizontal Position or the parameter is greater than 0.6 V.

  • If 0.6 V or less
  1. Ignition OFF, remove the jumper wire, disconnect the X2 harness connector at the S79P Window Switch-Passenger.
  2. Test for infinite resistance between the signal circuit terminal 7 and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in the signal circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the S79P Window Switch-Passenger.
  • Go to next step: If greater than 0.6 V

11. Test or replace the M77P Outside Rearview Mirror Motor-Passenger.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Outside Rearview Mirror Actuator Replacement
  • Front Side Door Window Switch Replacement
  • Front Side Door Window Switch Replacement

Power Mirror Malfunction (without A45)

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category

Diagnostic Fault Information

Mirrors

1. Both Outside Power Mirrors Inoperative
2. Driver Outside Power Mirror Malfunction
3. Passenger Outside Power Mirror Malfunction

Circuit/System Description

The outside rearview mirror switch controls the outside rearview mirrors based on the position of the mirror selector switch and which movement position is selected. The outside rearview mirror switch has four positions: up, down, left, and right. B+ is applied to the switch from the power mirror fuse and when a movement position switch is selected, voltage is sent to the commanded mirror via a mirror control circuit. The opposite mirror control circuit acts as a ground circuit for the bi-directional mirror motor. Ground is the applied through the switch.

Reference Information

Schematic Reference

Outside Rearview Mirror Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Outside Mirror Description and Operation (Without A45)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Circuit/System Verification

1. Verify the mirror glass of the A9A Outside Rearview Mirror-Driver and the A9B Outside Rearview Mirror-Passenger move UP, DOWN, LEFT and RIGHT with the S146 Outside Rearview Mirror Switch.

  • If both outside mirror glasses do not move

Refer to Circuit/System Testing - Both Outside Rearview Mirrors Inoperative.

  • If the driver outside mirror glass does not move UP, DOWN, LEFT or RIGHT

Refer to Circuit/System Testing - Driver Outside Mirror Movement Malfunction.

  • If the passenger outside mirror glass does not move UP, DOWN, LEFT or RIGHT

Refer to Circuit/System Testing - Passenger Outside Mirror Movement Malfunction.

  • Go to next step: If the mirror glass of the A9A Outside Rearview Mirror-Driver and the A9B Outside Rearview Mirror-Passenger move UP, DOWN, LEFT and RIGHT

2. All OK.

Circuit/System Testing

Both Outside Rearview Mirrors Inoperative

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S146 Outside Rearview Mirror Switch. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 10 Ω between the ground circuit terminal 24 and ground.

  • If 10 Ω or greater
  1. Ignition OFF.
  2. Test for less than 2 Ω in the ground circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, repair the open/high resistance in the ground connection.
  • Go to next step: If less than 10 Ω

3. Verify a test lamp illuminates between the B+ circuit terminal 23 and ground.

  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 Ω in the B+ circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for infinite resistance between each of the control circuit terminals listed below and ground:
    • Control circuit terminal 2
    • Control circuit terminal 3
    • Control circuit terminal 4
    • Control circuit terminal 6
    • Control circuit terminal 7
    • Control circuit terminal 8
    • If less than infinite resistance, repair the short to ground on the circuit.
    • If infinite resistance, replace the appropriate M77 Outside Rearview Mirror Motor.
  • Go to next step: If the test lamp illuminates

4. Test or replace the S146 Outside Rearview Mirror Switch.

Driver Outside Mirror Movement Malfunction

1. Ignition OFF, disconnect the X510 inline harness connector at the A9A Outside Rearview Mirror- Driver. Ignition ON 2. Connect a test lamp between the control circuit terminal 9 and control circuit terminal 12.

3. Verify the test lamp turns ON when commanding the UP and DOWN states with the S146 Outside Rearview Mirror Switch.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, test or replace the S146 Outside Rearview Mirror Switch.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, test or replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp turns ON during each of the commands

4. Connect a test lamp between the control circuit terminal 10 and control circuit terminal 12.

5. Verify the test lamp turns ON when commanding the LEFT and RIGHT states with the S146 Outside Rearview Mirror Switch.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, test or replace the S146 Outside Rearview Mirror Switch.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, test or replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp turns ON during each of the commands

6. Test or replace the M77D Outside Rearview Mirror Motor-Driver.

Passenger Outside Mirror Movement Malfunction

1. Ignition OFF, disconnect the X610 inline harness connector at the A9B Outside Rearview Mirror- Passenger. Ignition ON 2. Connect a test lamp between the control circuit terminal 9 and control circuit terminal 12.

3. Verify the test lamp turns ON when commanding the UP and DOWN states with the S146 Outside Rearview Mirror Switch.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, test or replace the S146 Outside Rearview Mirror Switch.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, test or replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp turns ON during each of the commands

4. Connect a test lamp between the control circuit terminal 10 and control circuit terminal 12.

5. Verify the test lamp turns ON when commanding the LEFT and RIGHT states with the S146 Outside Rearview Mirror Switch.

  • If the test lamp remains OFF during either of the commands
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch.
  2. Test for infinite resistance between each control circuit and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • Go to next step: If infinite resistance
  3. Test for less than 2 Ω in each control circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, test or replace the S146 Outside Rearview Mirror Switch.
  • If the test lamp is always ON
  1. Ignition OFF, remove the test lamp, disconnect the harness connector at the S146 Outside Rearview Mirror Switch, ignition ON.
  2. Test for less than 1 V between each control circuit and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • If less than 1 V, test or replace the S146 Outside Rearview Mirror Switch
  • Go to next step: If the test lamp turns ON during each of the commands

6. Test or replace the M77P Outside Rearview Mirror Motor-Passenger.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Outside Rearview Mirror Actuator Replacement
  • Front Side Door Window Switch Replacement

Power Mirror Tilt Inoperative in Reverse

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

Circuit/System Description

The outside mirror switch and passenger window switch are on a serial data circuit with the memory seat module as the master. The mirror select and directional control switches are inputs to the memory seat module through the serial data circuit. When the memory seat module receives switch inputs from the outside mirror switch, mirror output commands are sent to the appropriate switch through the serial data circuit. The outside mirror switch and passenger window switch control the left and right outside rear view mirrors through bi-directional motor control circuits. The motor control circuits are floating while in an inactive state and the switches will apply power and ground to the control circuits as necessary to move the mirror in the commanded direction.

Mirror position is determined by both horizontal and vertical position sensors in each of the power mirrors. The outside mirror switch and passenger window switch supply a 5 V reference, low reference, and horizontal and vertical position signal circuits to these sensors. The signal circuits are referenced from 5 V by the switches and the signal circuit voltage levels represent the mirror positions. The mirror positions are sent to the memory seat module through the serial data circuit where they are stored for memory mirror operation. When the memory seat module receives a memory recall command, the memory seat module will send the go to position commands to the outside mirror switch and passenger window switch. The switches will then drive the appropriate mirror motors to the commanded position sensor settings.

Diagnostic Aids

The Park Tilt Mirror in Reverse is a feature in the Personalization Menu of the audio system controls that allows the operator to program the driver and/or passenger outside rearview mirrors to tilt downward when the vehicle is shifted into R (reverse). Verify that this feature has been correctly programmed into the system before performing extensive diagnostics

Reference Information

Schematic Reference

Outside Rearview Mirror Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Outside Mirror Description and Operation (With A45)Outside Mirror Description and Operation (Without A45)

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Verification

1. Ignition ON.

2. Verify the A9A Outside Rearview Mirror - Driver moves when commanding the Driver Mirror Horizontal Movement Right/Left and Driver Mirror Vertical Movement Up/Down with a scan tool.

  • If the A9A Outside Rearview Mirror - Driver does not move RIGHT or LEFT or UP or DOWN

Refer to Power Mirror Malfunction (With A45)Power Mirror Malfunction (Without A45).

  • Go to next step: If the A9A Outside Rearview Mirror - Driver moves RIGHT, LEFT, UP and DOWN

3. Verify the A9B Outside Rearview Mirror-Passenger moves when commanding the Passenger Mirror Horizontal Movement Right/Left and Passenger Mirror Vertical Movement Up/Down with a scan tool.

  • If the A9B Outside Rearview Mirror-Passenger does not move RIGHT or LEFT or UP or DOWN

Refer to Power Mirror Malfunction (With A45)Power Mirror Malfunction (Without A45).

  • Go to next step: If the A9B Outside Rearview Mirror-Passenger moves RIGHT, LEFT, UP and DOWN

4. All OK.

Circuit/System Testing

1. Engine running, shift the vehicle in REVERSE.

2. Verify that the appropriate A9 Outside Rearview Mirror moves DOWN.

  • If the A9 Outside Rearview Mirror does not move DOWN

Replace the K40 Seat Memory Control Module

  • Go to next step: If the A9 Outside Rearview Mirror does move DOWN

3. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

Control Module References for the seat memory control module replacement, programming and setup.

    READ NEXT:

     Repair Instructions

    Outside Rearview Mirror Replacement Preliminary Procedures Front Side Door Window Garnish Molding Replacement. Outside Rearview Mirror Bolt [3x] CAUTION: Fastener Caution. Tighten 9 N.m (80 lb

     Description and Operation

    AUTOMATIC DAY-NIGHT MIRROR DESCRIPTION AND OPERATION Inside Rearview Mirror with the Automatic Day-Night Feature System Operation The inside rearview mirror uses 2 photocell sensors. One sensor is th

     Power Seats

    SPECIFICATIONS FASTENER TIGHTENING TORQUE SPECIFICATIONS Reusable Threaded Fastener Tightening Specifications NOTE: All fasteners listed in this table can be reused after removal. SCHEMATIC WIRING DI

    SEE MORE:

     Definition of Danger, Warning, Caution, and Note

    The diagnosis and repair procedures in a GM Service Manual contain both general and specific Dangers, Warnings, Cautions, Notes or Importants. GM is dedicated to the presentation of service information that helps the technician to diagnose and repair the systems necessary for the proper operation

     Air Vents

    Use the slider knob on the air vent louvers to change the amount and direction of the airflow. To close the outboard air vents, move the slider knob to the full outboard position. To close the center air vents, move the slide knob to the full inboard position. To close the rear passenger air vent

    © 2019-2024 Copyright www.opinsb.com
