Opel Insignia: Driver Assistance Systems

Opel Insignia B 2018-2025 Service Manual / Accessories and Equipment / Driver Assistance Systems

SPECIFICATIONS

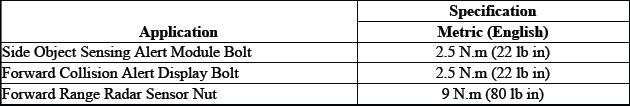

FASTENER SPECIFICATIONS

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Driver Assistance Systems

SCHEMATIC WIRING DIAGRAMS

DRIVER ASSISTANCE SYSTEMS WIRING SCHEMATICS

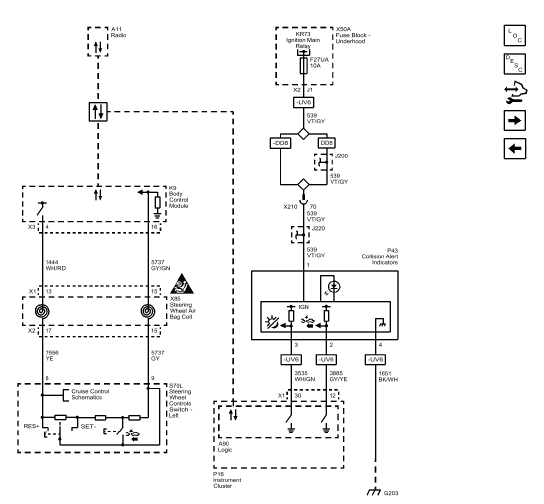

Forward Collision Alert (UEU)

Driver Assistance Systems

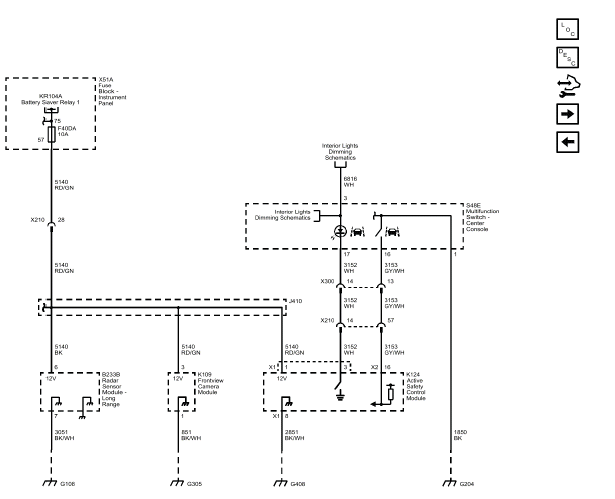

Lane Keep Assist (UHX)

Driver Assistance Systems

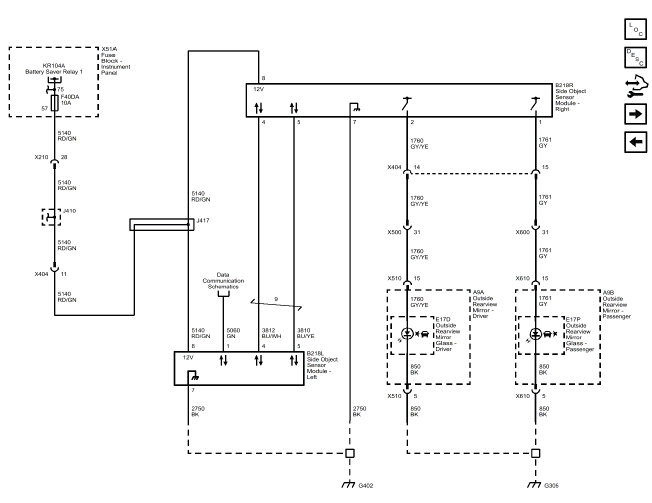

Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)

Driver Assistance Systems

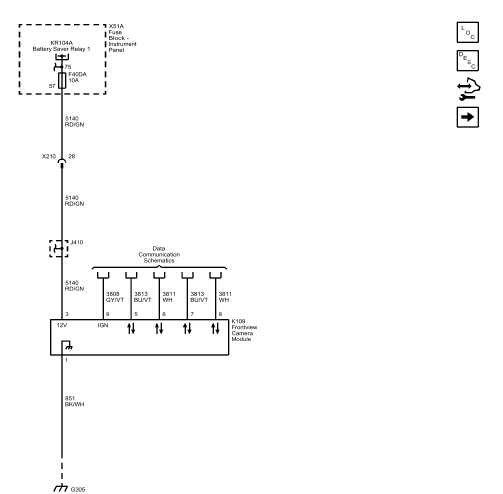

Collision Avoidance - Camera and Module Power, Ground and Controls (UGN)

Driver Assistance Systems

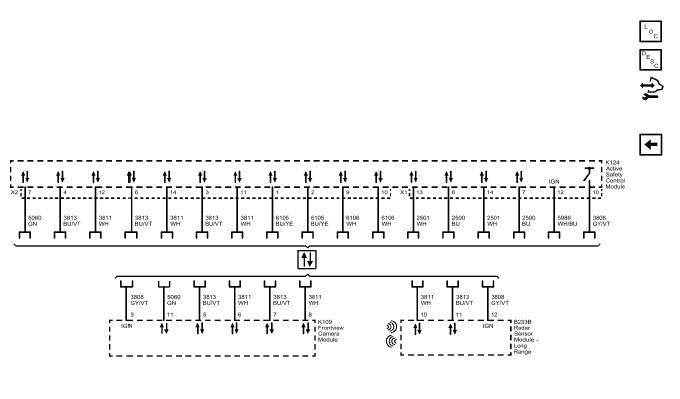

Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)

Driver Assistance Systems
