Opel Insignia: Schematic Wiring Diagrams
HEADLIGHTS/DAYTIME RUNNING LIGHTS (DRL) WIRING SCHEMATICS

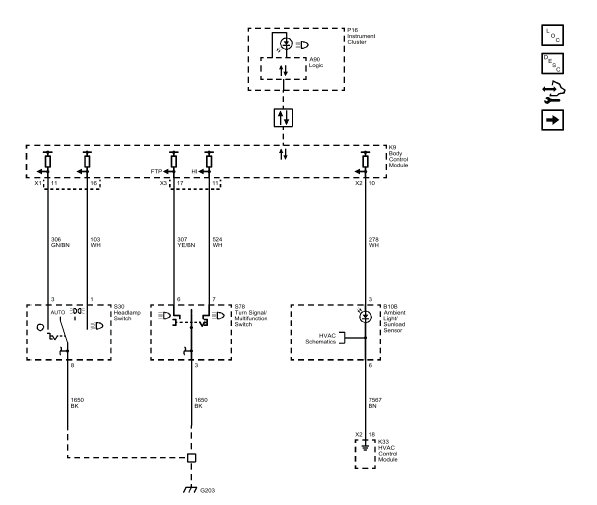

Controls and Indicators
.png)

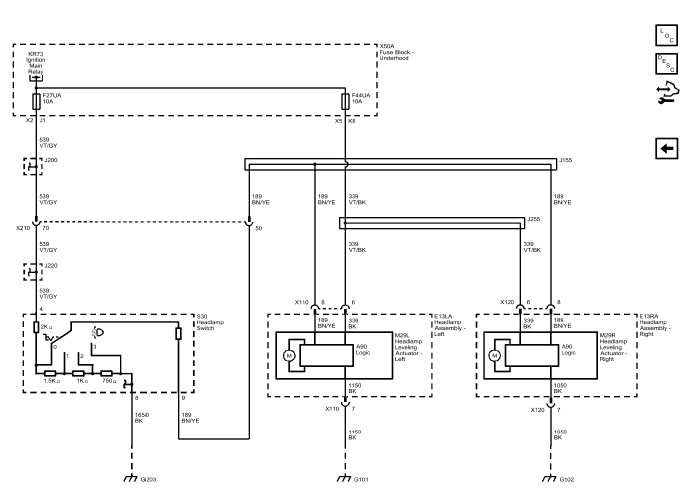

Halogen Lamps and Daytime Running Lamps (T4A)
.png)

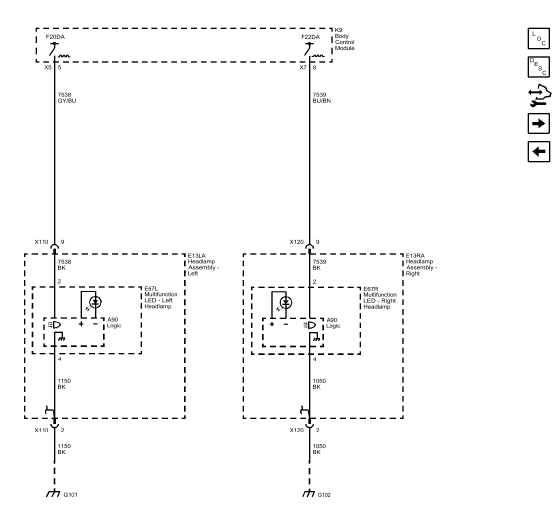

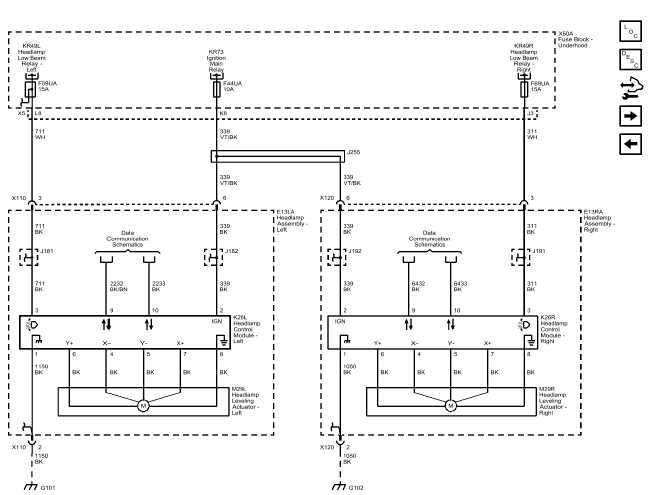

Left LED Headlamp Power, Ground and Serial Data (T4L)
.png)

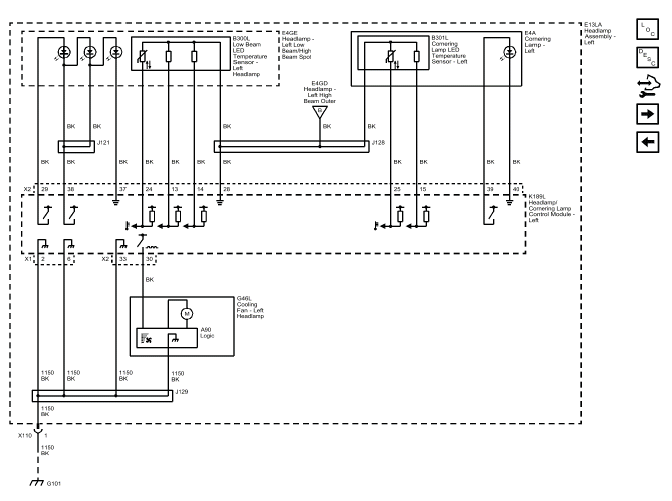

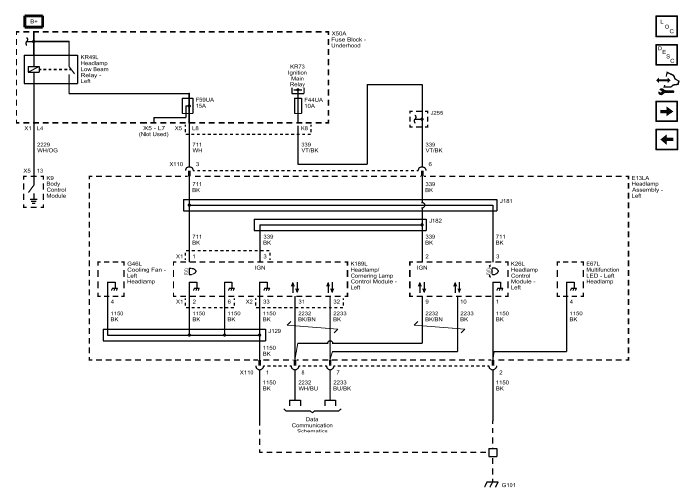

Left LED Low Beam Lamps, Cornering Lamp and Cooling Fan (T4L)
.png)

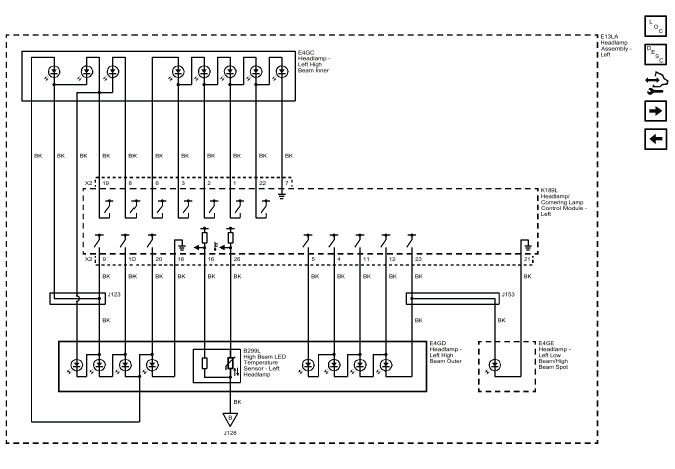

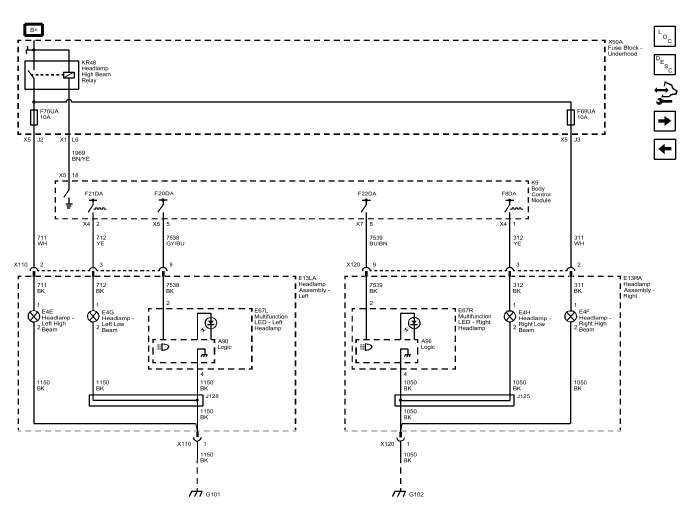

Left LED High Beam Lamps, and High Beam Spot (T4L)
.png)

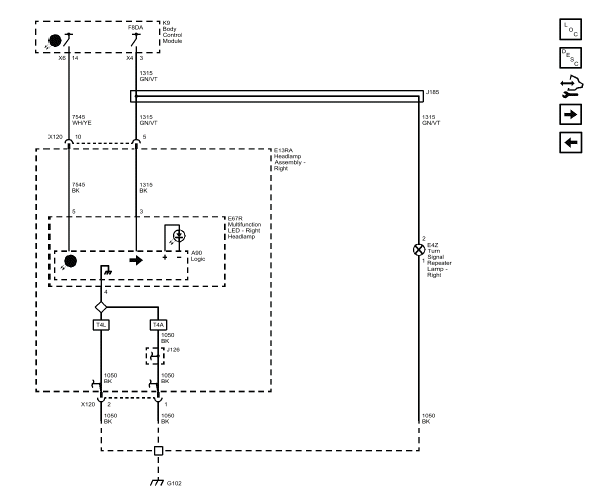

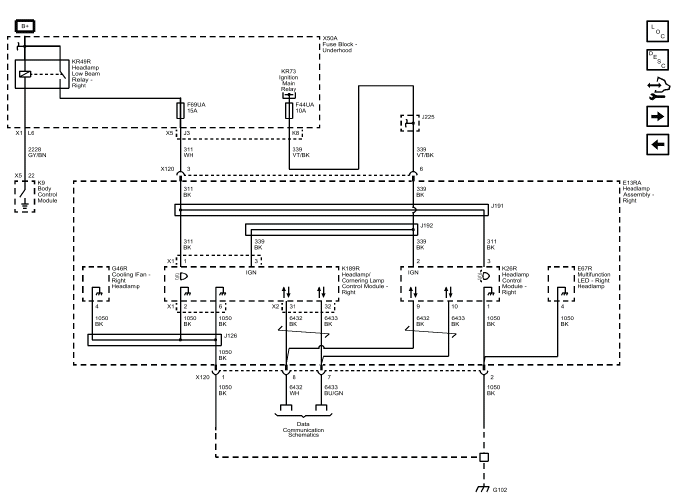

Right LED Headlamp Power, Ground and Serial Data (T4L)
.png)

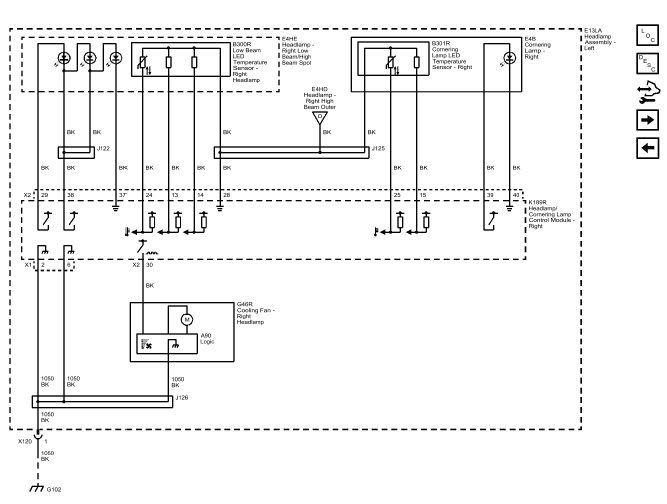

Right LED Low Beam Lamps, Cornering Lamp and Cooling Fan (T4L)
.png)

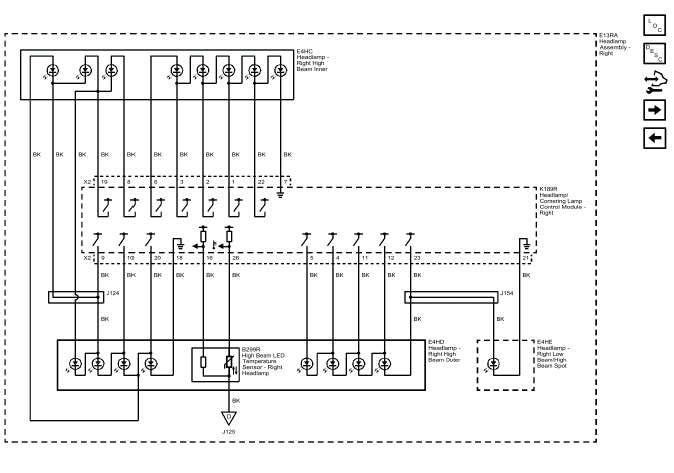

Right LED High Beam Lamps, and High Beam Spot (T4L)
.png)
Daytime Running Lamps (T4L)
.png)

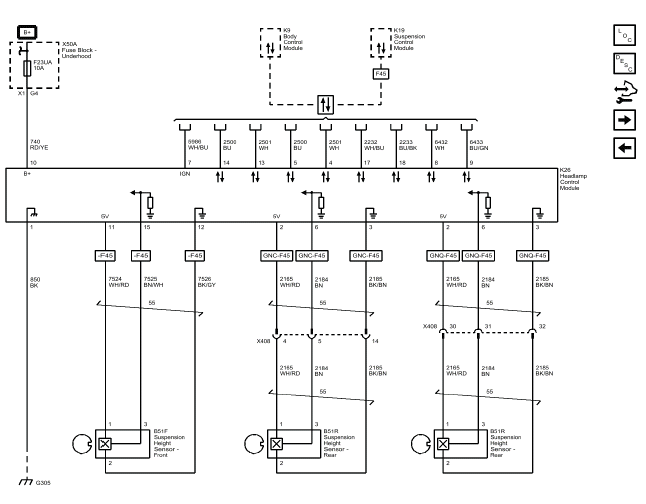

Automatic Leveling and Adaptive Forward Lighting - Power, Ground, Serial Data and Sensors (T4L)
.png)
Automatic Leveling and Adaptive Forward Lighting - Aiming, Leveling and Beam Control (T4L)
.png)
Manual Leveling (TR6)
.png)
FOG LIGHTS WIRING SCHEMATICS

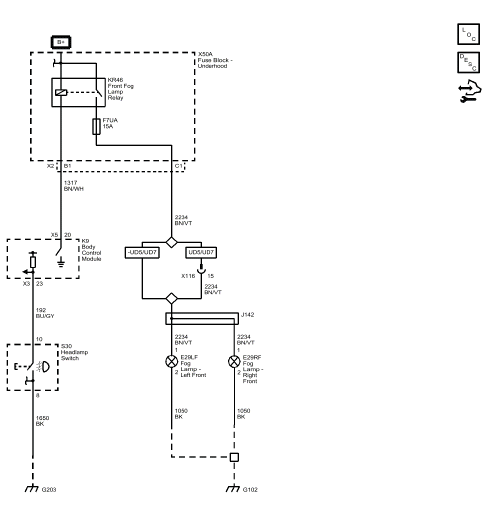

Front Fog Lamps
.png)
EXTERIOR LIGHTS WIRING SCHEMATICS

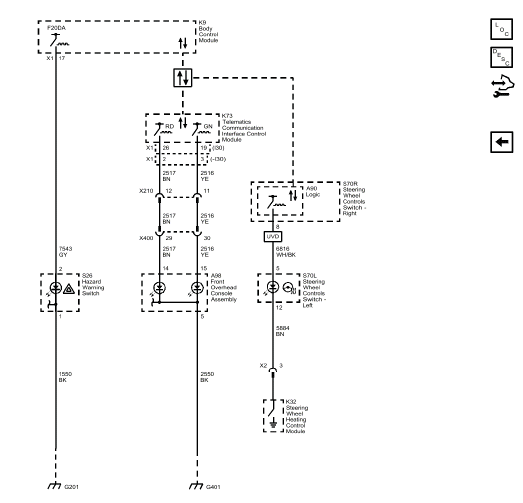

Controls and Indicators
.png)

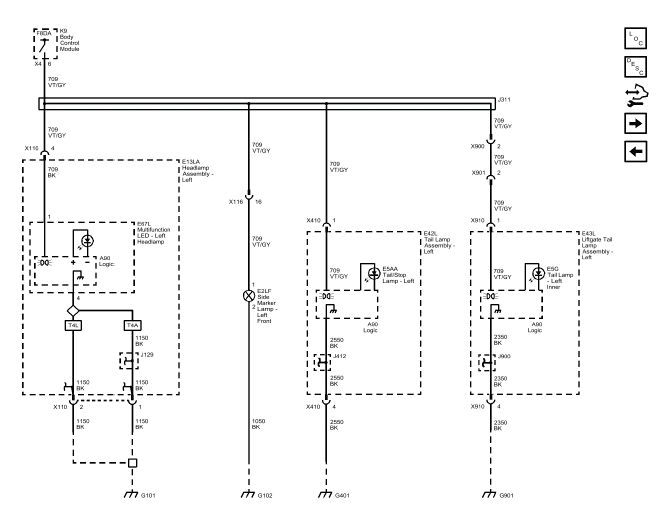

Park Lamps, Tail/Stop Lamps, Tail Lamps, and Side Marker - Left
.png)

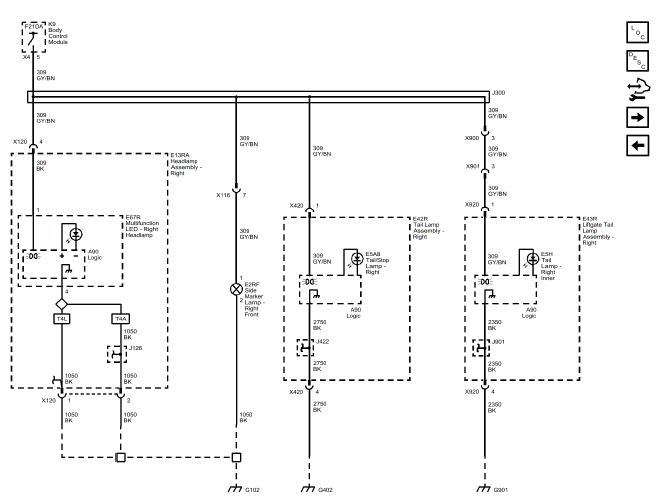

Park Lamps, Tail/Stop Lamps, Tail Lamps, and Side Marker - Right
.png)

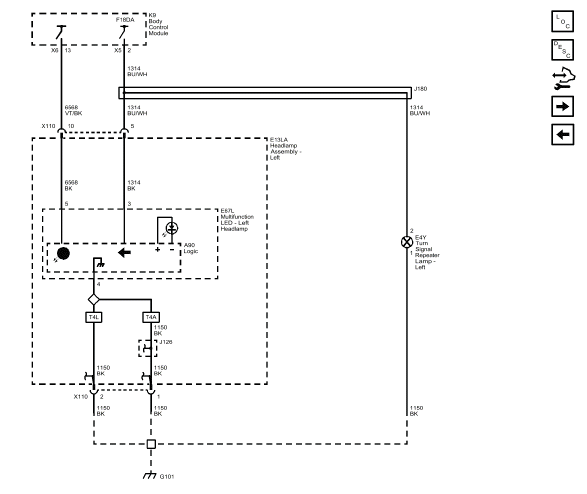

Turn Signal Lamps - Left Front
.png)
Turn Signal Lamps - Right Front
.png)
Stop/Turn Lamps, Center High Mounted Stop Lamp, and Liftgate Courtesy Lamps
.png)

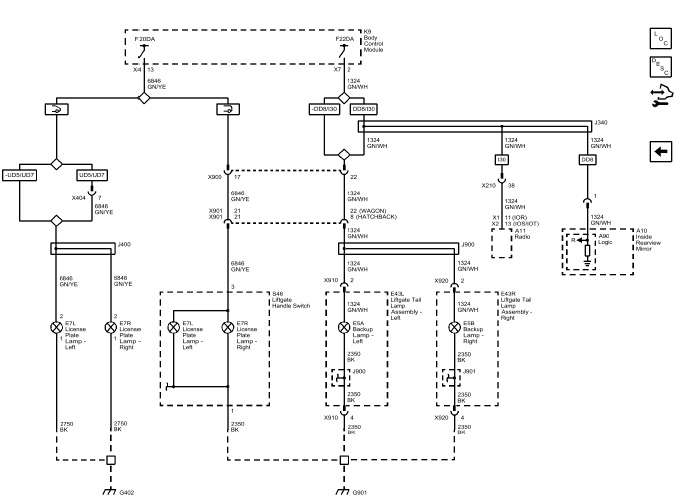

Backup and License Lamps
.png)
INTERIOR LIGHTS WIRING SCHEMATICS

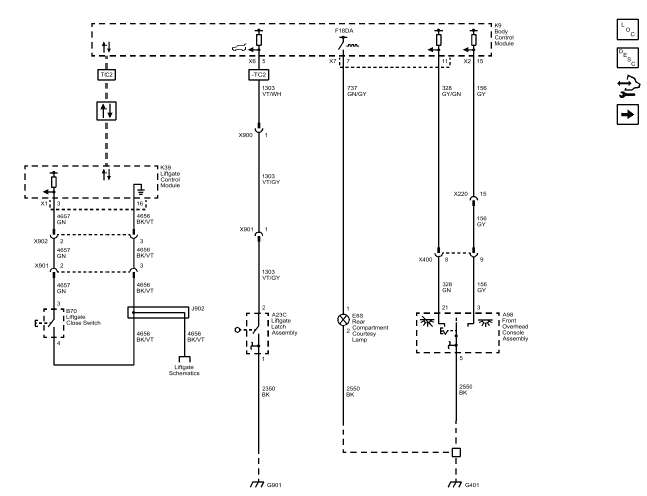

Controls and Rear Compartment Lamp
.png)

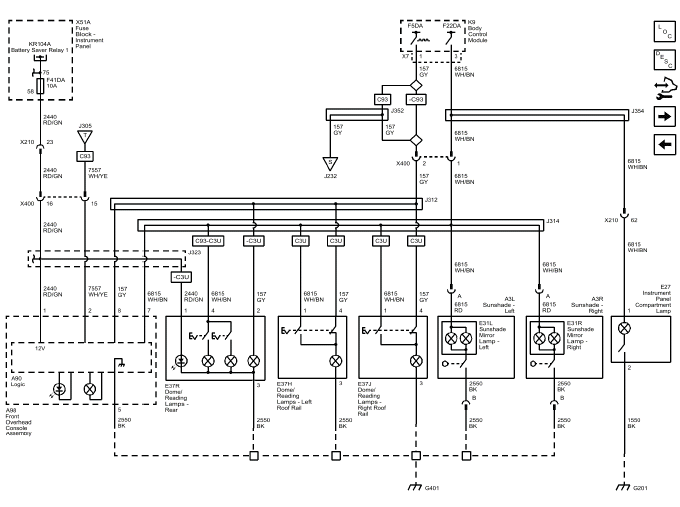

Overhead and Instrument Panel Compartment Lamps
.png)

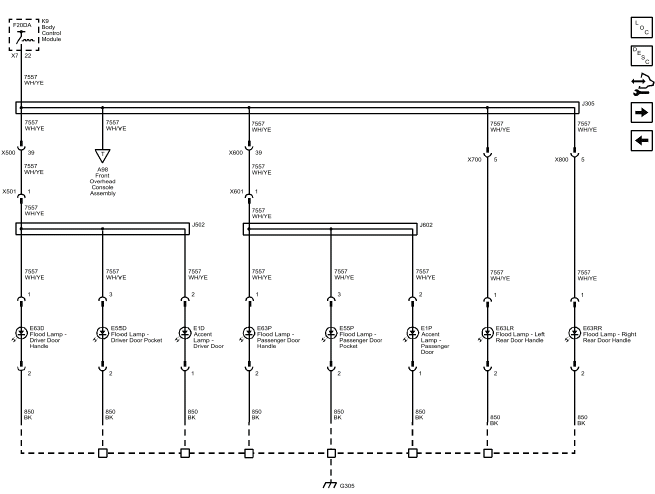

Accent and Flood Lamps - Doors (C93)
.png)

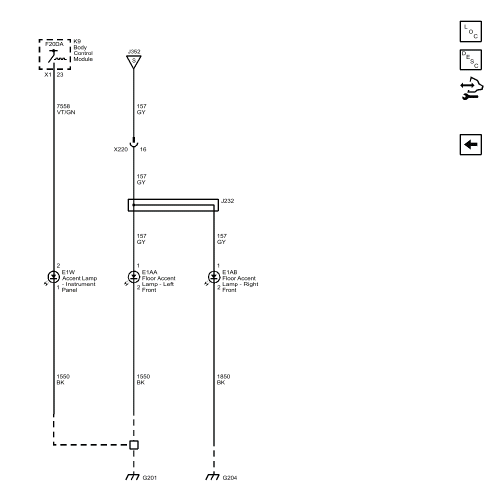

Accent and Flood Lamps - Instrument Panel and Floor (C93)
.png)
INTERIOR LIGHTS DIMMING WIRING SCHEMATICS

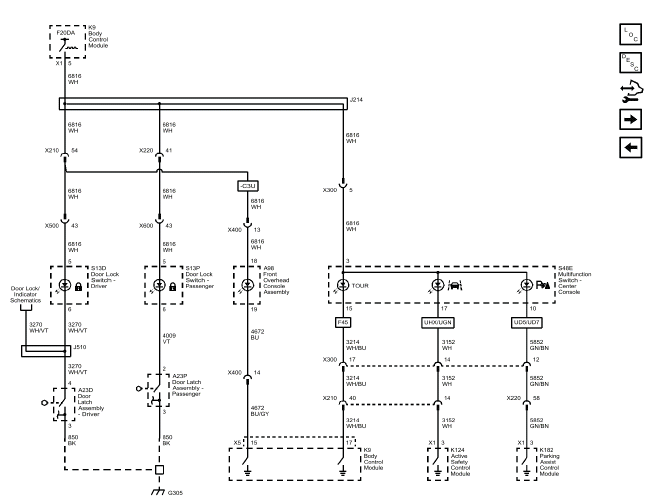

Controls, Instrument Panel and Floor Console Lamps
.png)
Doors and Overhead Lamps
.png)

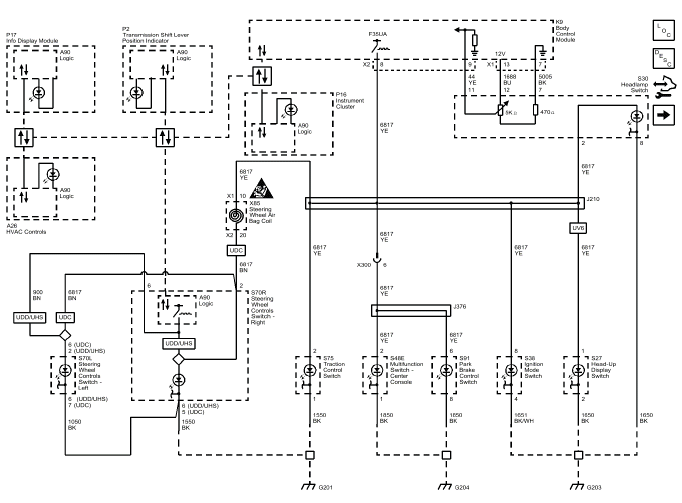

Indicator Lamps (1 of 2)
.png)
Indicator Lamps (2 of 2)
.png)
SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS
EL-38522
J-38522

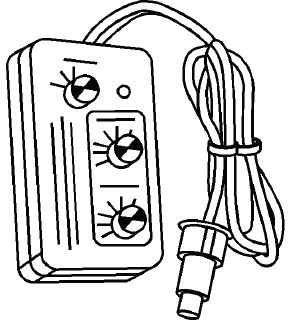

Variable Signal Generator
.png)
SPECIFICATIONS
FASTENER SPECIFICATIONS

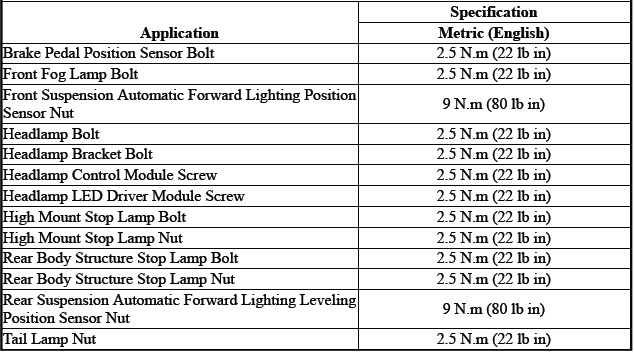

Reusable Threaded Fastener Tightening Specifications
.png)
