Opel Insignia: Specifications, Schematic and Routing Diagrams

Opel Insignia B 2018-2026 Service Manual / Engine / Engine Cooling / Specifications, Schematic and Routing Diagrams

SPECIFICATIONS

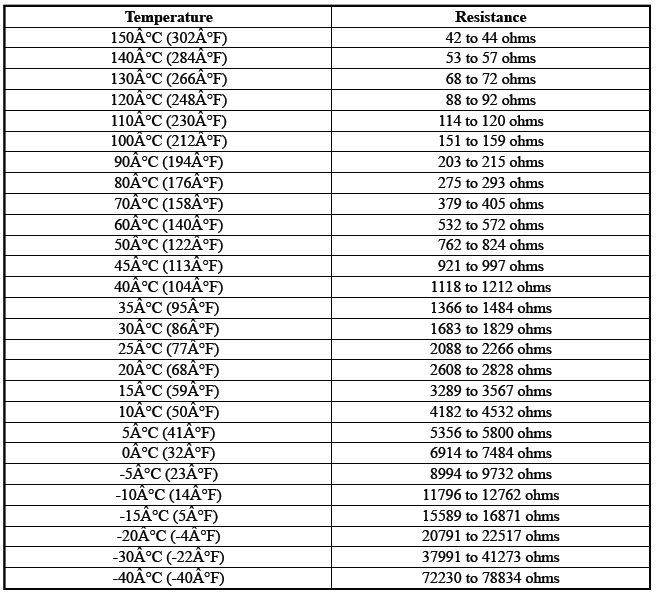

TEMPERATURE VERSUS RESISTANCE

Engine Cooling

FASTENER SPECIFICATIONS (2.0L LTG)

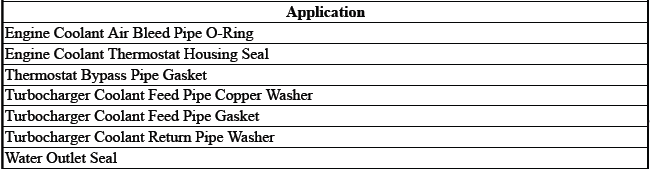

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Engine Cooling

Engine Cooling

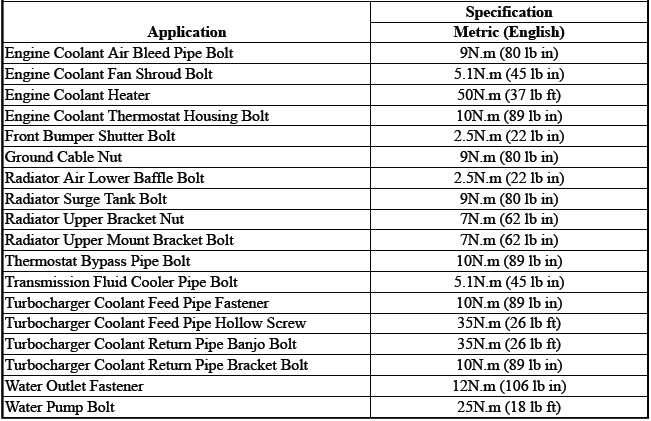

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Engine Cooling

FASTENER SPECIFICATIONS (3.6L LGX)

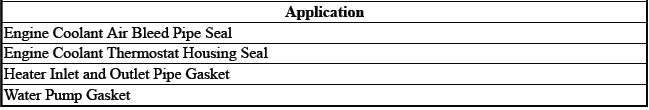

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Engine Cooling

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Engine Cooling

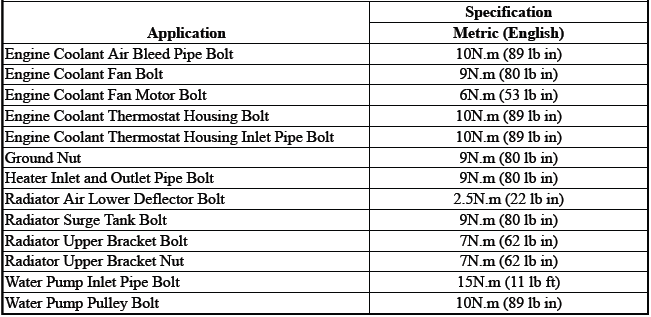

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Engine Cooling

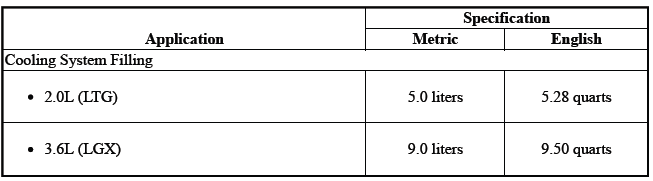

APPROXIMATE FLUID CAPACITIES

Engine Cooling

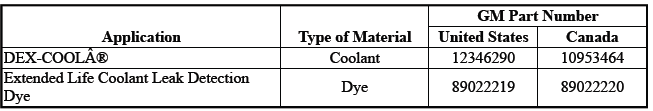

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Engine Cooling

SCHEMATIC AND ROUTING DIAGRAMS

ENGINE HEATING/COOLING SCHEMATICS

Cooling Fans (LGX)

Engine Cooling

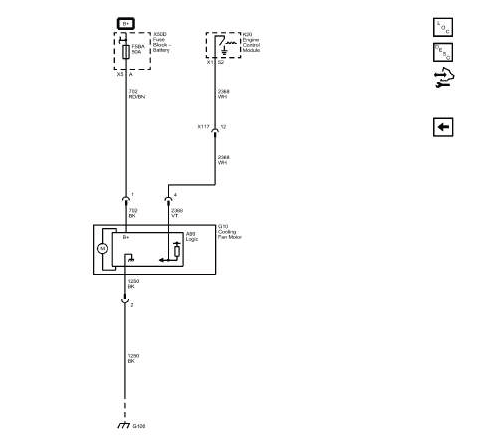

Cooling Fan (LTG)

Engine Cooling
