Opel Insignia: Steering Wheel and Column

SPECIFICATIONS

FASTENER SPECIFICATIONS

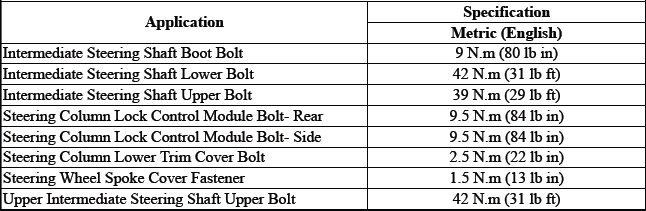

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Steering Wheel and Column

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Steering Wheel and Column

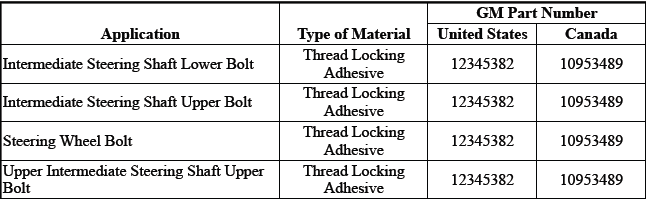

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Steering Wheel and Column

SCHEMATIC AND WIRING DIAGRAMS

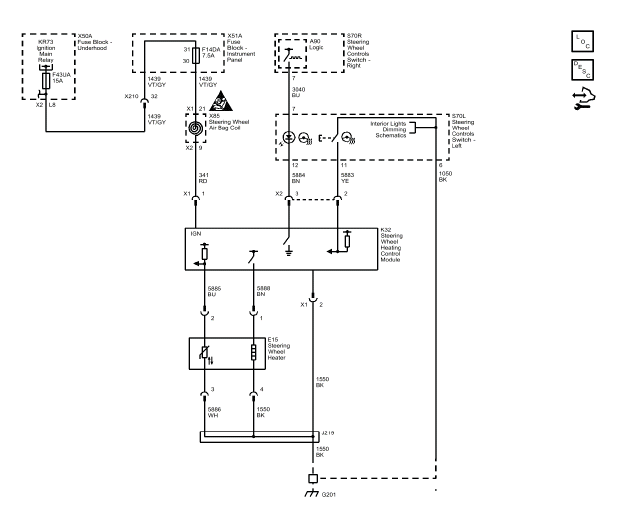

STEERING WHEEL WIRING SCHEMATICS

Heated Steering Wheel (UVD)

Steering Wheel and Column
