Opel Insignia: Special Tools and Equipment
SPECIAL TOOLS
BO-38185
J-38185
Hose Clamp Pliers
.png)
GE-8800
J-43600
ACR 2000 Air Conditioning Service Center
.png)
GE-39400-A
J-39400-A
Halogen Leak Detector
.png)
GE-41447
J-41447
R-134a/R123yf

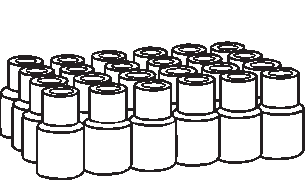

A/C Tracer Dye - Box of 24
.png)
GE-42220
J-42220
Universal 12V Leak Detection Lamp
.png)
GE-43872
J-43872
Fluorescent Dye Cleaner
.png)
GE-45037
J-45037
A/C Oil Injector
.png)
GE-45268
J-45268

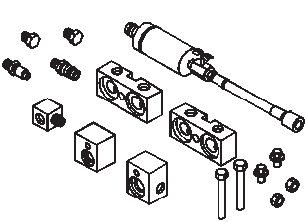

A/C Flushing Adapter Kit
.png)
GE-46246
J-46246
Valve Core Tool
.png)
GE-46297
J-46297
A/C Dye Injector Kit
.png)
GE-46297-12
J-46297-12

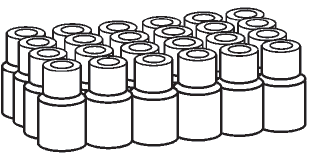

Replacement Dye Cartridges
.png)
GE-48800

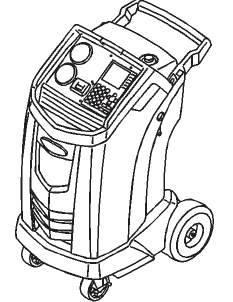

CoolTech A/C Recharge Machine
.png)
GE-48965
CH-50198

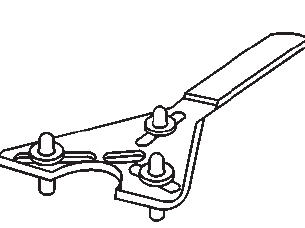

Clutch Plate Holder
.png)
GE-50078
Electronic Leak Detector
.png)
GE-50300

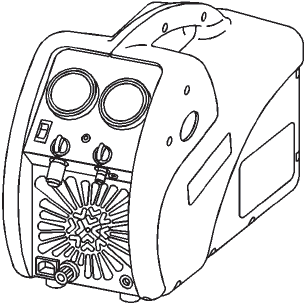

R-1234yf A/C Refrigerant Recovery/Recharge Cart
.png)
GE-50597
Machine R-1234yf Contaminated Refrigerant
.png)
GE-50744

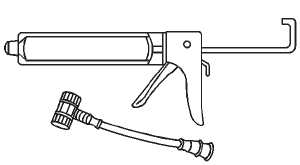

R-1234yf PAG Oil Injector Hose
.png)
GE-50745

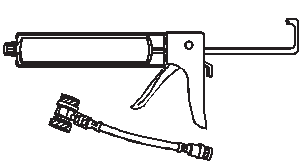

R-1234yf POE Oil Injector Hose
.png)
EL-47955
J-2534
Multi Diagnostic Interface MDI
.png)
