SPECIFICATIONS

FASTENER SPECIFICATIONS

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Application

Air Conditioning Compressor Hose Seal
Air Conditioning Compressor and Condenser Hose Seal
Air Conditioning Condenser Hose Seal
Air Conditioning Compressor Oil Filler Plug Seal
Air Conditioning Evaporator Inlet Tube Seal
Air Conditioning Evaporator Outlet Tube Seal
Air Conditioning Evaporator Thermal Expansion Valve Seal
Air Conditioning Receiver and Dehydrator Fitting Seal
Air Conditioning Refrigerant Pressure Sensor Seal
Heater and Air Conditioning Evaporator and Blower Module Seal

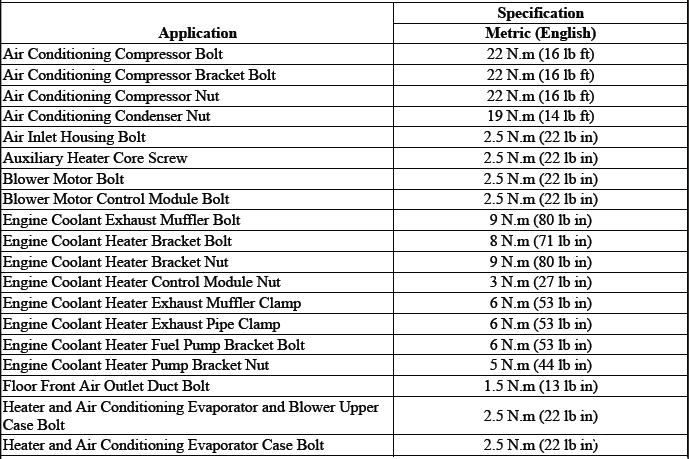

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Heating, Ventilation, and Air Conditioning

Heating, Ventilation, and Air Conditioning

APPROXIMATE FLUID CAPACITIES

Heating, Ventilation, and Air Conditioning

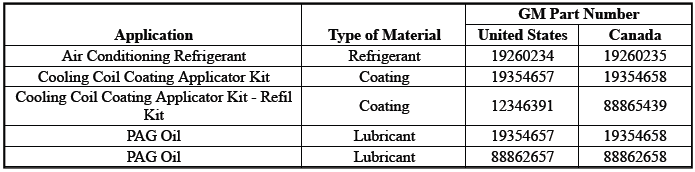

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Heating, Ventilation, and Air Conditioning

VISUAL IDENTIFICATION

REFRIGERANT LABEL SYMBOLS

Air Conditioning Service Fittings

Service fittings meeting SAE J639 are used on this vehicle for R-1234yf refrigerant. GM has chosen gray caps to designate systems with R-1234yf.

Refrigerant Charge Label Symbols

Caution

Heating, Ventilation, and Air Conditioning

Air Conditioning System- Mobile Air Conditioning

Heating, Ventilation, and Air Conditioning

MAC System Lubricant Type

Heating, Ventilation, and Air Conditioning

See Vehicle Service Manual for MAC Service Information

Heating, Ventilation, and Air Conditioning

Requires Registered Technician to Service MAC System

Heating, Ventilation, and Air Conditioning

Flammable Refrigerant

Heating, Ventilation, and Air Conditioning

For Safety System Components Shall Be Replaced- Shall Not Be Repaired or Salvaged for Reuse

Heating, Ventilation, and Air Conditioning
